2. The differential amplifier shown below is utilizing a current mirror. Transistor Q3 is a current mirror of Q4. Assume

[answerhappygod]

2 The Differential Amplifier Shown Below Is Utilizing A Current Mirror Transistor Q3 Is A Current Mirror Of Q4 Assume 1 (84.59 KiB) Viewed 53 times

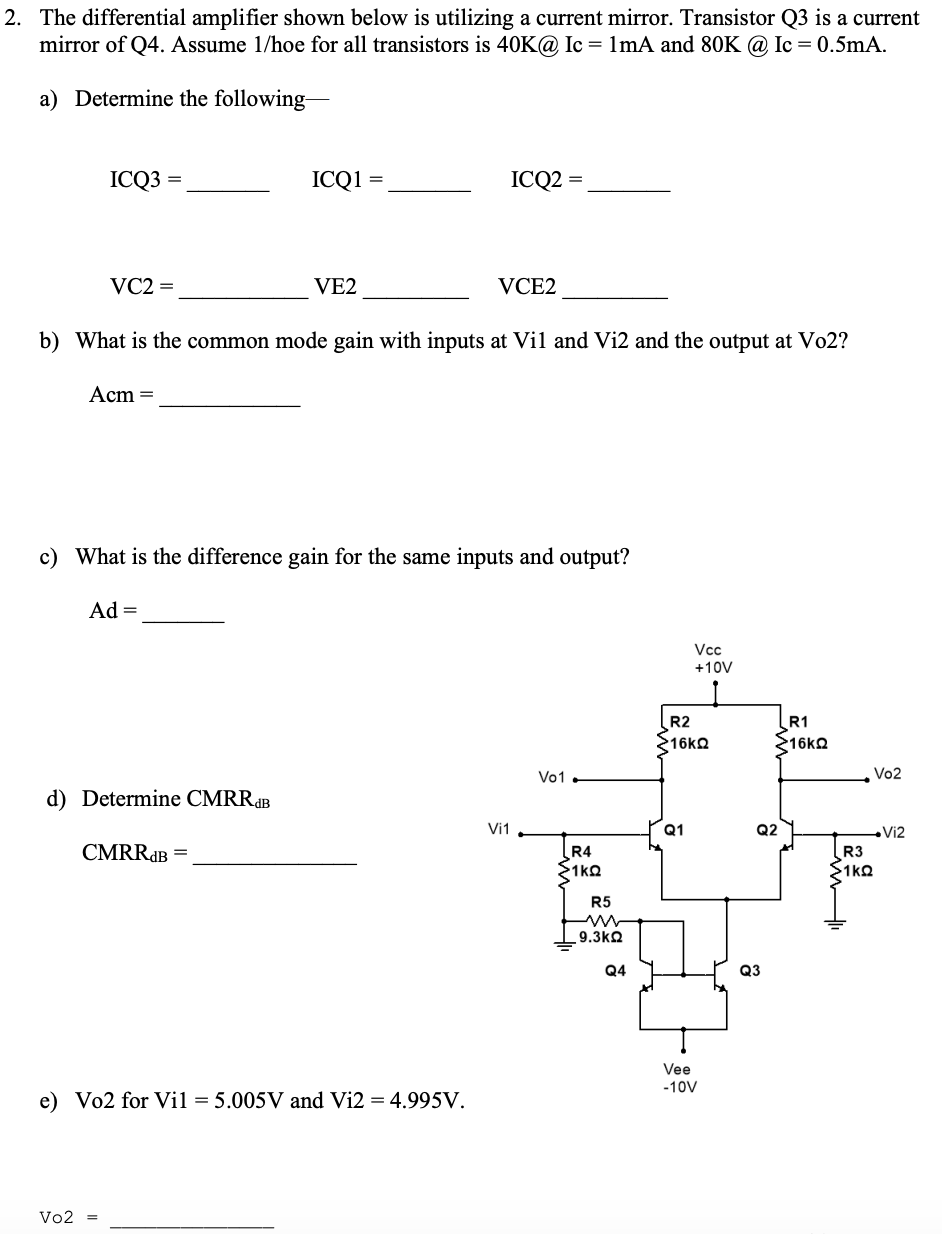

2. The differential amplifier shown below is utilizing a current mirror. Transistor Q3 is a current mirror of Q4. Assume 1/hoe for all transistors is 40K@ Ic = 1mA and 80K @ Ic = 0.5mA. a) Determine the following- ICQ3 = ICQ1 = ICQ2 = VC2= VE2 VCE2 b) What is the common mode gain with inputs at Vil and Vi2 and the output at Vo2? Acm = c) What is the difference gain for the same inputs and output? Ad= Vcc +10V R2 16kΩ R1 316kg Vo1 Vo2 d) Determine CMRRJB Vi1 Q1 Q2 CMRRJB = R4 1kg Vi2 R3 >1kΩ R5 w 9.3.2 Q4 Q3 Vee -10V e) Vo2 for Vil = 5.005V and Vi2 = 4.995V. Vo2
