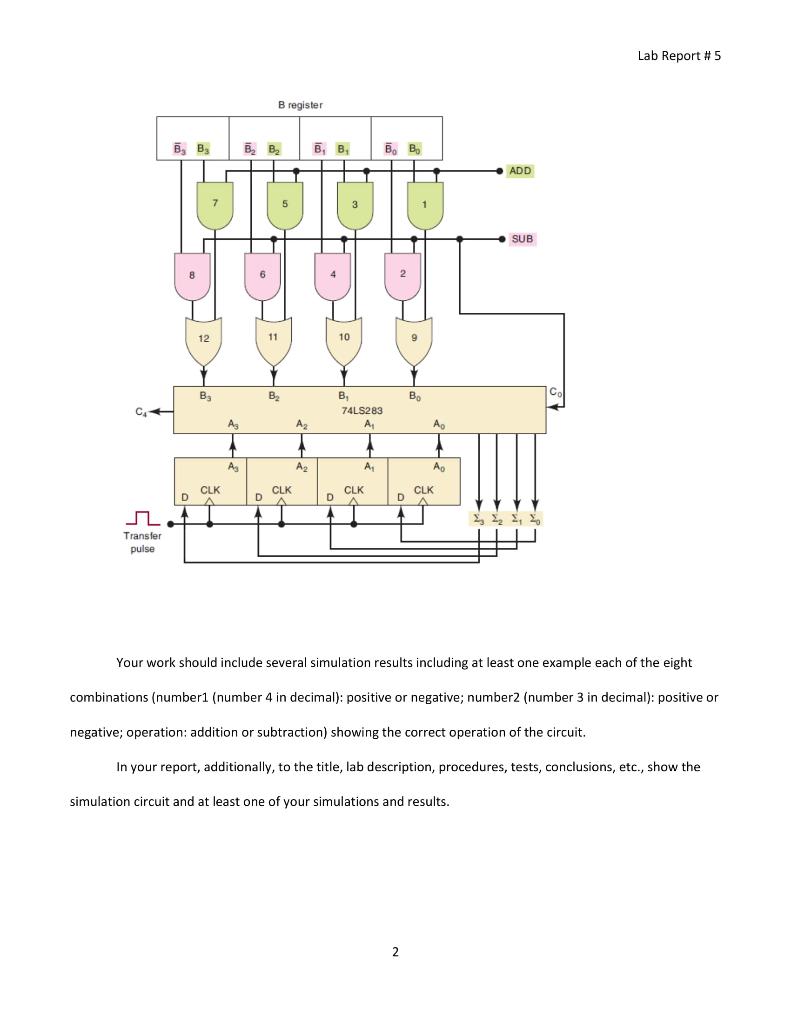

Lab Report #5 B register Ē, B В. В. B, B, BB ADD 5 3 SUB 6 4 2. 12 11 10 9 B B2 во C4 B 74LS283 A: As Az AO AL A. A, A. CLK CLK CLK CLK D D D D Transfer pulse Your work should include several simulation results including at least one example each of the eight combinations (number1 (number 4 in decimal): positive or negative; number2 (number 3 in decimal): positive or negative; operation: addition or subtraction) showing the correct operation of the circuit. In your report, additionally, to the title, lab description, procedures, tests, conclusions, etc., show the simulation circuit and at least one of your simulations and results. 2.
