(10 points) The following circuit is often used as shift register in digital systems. Assume that tsu = 3ns, thold= 4ns,

Post by answerhappygod »

10 Points The Following Circuit Is Often Used As Shift Register In Digital Systems Assume That Tsu 3ns Thold 4ns 1
10 Points The Following Circuit Is Often Used As Shift Register In Digital Systems Assume That Tsu 3ns Thold 4ns 1 (39.78 KiB) Viewed 54 times

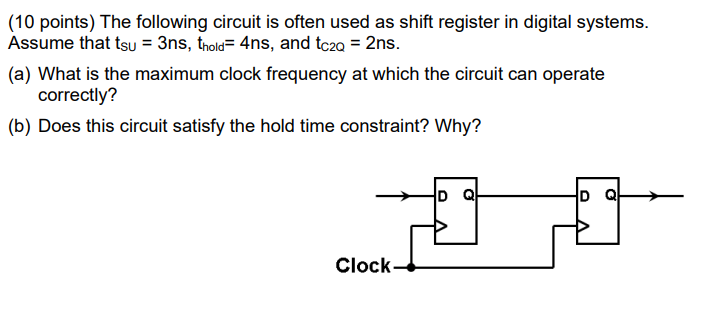

(10 points) The following circuit is often used as shift register in digital systems. Assume that tsu = 3ns, thold= 4ns, and tc2q = 2ns. (a) What is the maximum clock frequency at which the circuit can operate correctly? (b) Does this circuit satisfy the hold time constraint? Why? D 句 Clock
