(15 points) You have designed an integrated circuit for NASA to be implemented in a robot in Mars mission. After perform

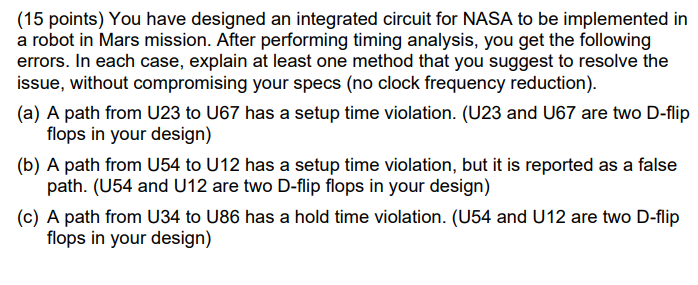

(15 points) You have designed an integrated circuit for NASA to be implemented in a robot in Mars mission. After performing timing analysis, you get the following errors. In each case, explain at least one method that you suggest to resolve the issue, without compromising your specs (no clock frequency reduction). (a) A path from U23 to U67 has a setup time violation. (U23 and U67 are two D-flip flops in your design) (b) A path from U54 to U12 has a setup time violation, but it is reported as a false path. (U54 and U12 are two D-flip flops in your design) (c) A path from U34 to U86 has a hold time violation. (U54 and U12 are two D-flip flops in your design)
