Prob.3 (17pts) For the following transfer function, A,(s) = 1000000 (s + 10) (s + 100)(8 + 1000) i. (2pts) Put the trans

[answerhappygod]

Prob 3 17pts For The Following Transfer Function A S 1000000 S 10 S 100 8 1000 I 2pts Put The Trans 1 (31.52 KiB) Viewed 45 times

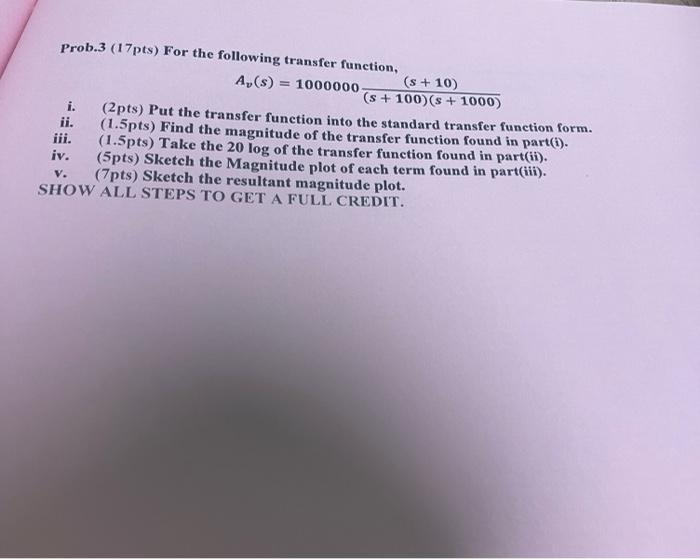

Prob.3 (17pts) For the following transfer function, A,(s) = 1000000 (s + 10) (s + 100)(8 + 1000) i. (2pts) Put the transfer function into the standard transfer function form. ii. (1.5pts) Find the magnitude of the transfer function found in part(i). iii. (1.5pts) Take the 20 log of the transfer function found in part(ii). iv. (5pts) Sketch the Magnitude plot of each term found in part(iii). (7pts) Sketch the resultant magnitude plot. SHOW ALL STEPS TO GET A FULL CREDIT. V.
