1. A charged capacitor is connected to a 100-ka resistor. After 1 second the voltage across the capacitor becomes one ha

[answerhappygod]

1 A Charged Capacitor Is Connected To A 100 Ka Resistor After 1 Second The Voltage Across The Capacitor Becomes One Ha 1 (37.23 KiB) Viewed 41 times

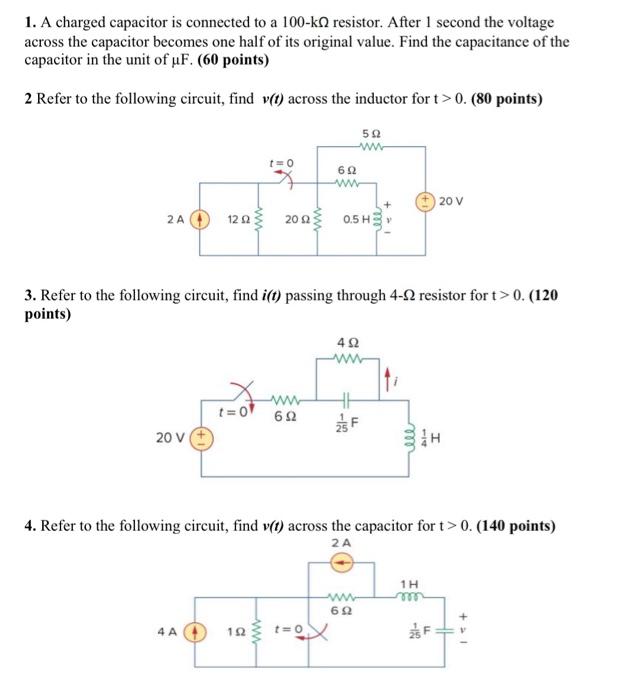

1. A charged capacitor is connected to a 100-ka resistor. After 1 second the voltage across the capacitor becomes one half of its original value. Find the capacitance of the capacitor in the unit of uF. (60 points) 2 Refer to the following circuit, find v(t) across the inductor for t> 0. (80 points) t=0 52 w 622 w 20 V 2A 12 Ω 200 0.5H 3. Refer to the following circuit, find i(t) passing through 4-12 resistor for t > 0. (120 points) 492 w t = 0962 HE F 20 V $ Ан H 4. Refer to the following circuit, find v(t) across the capacitor fort > 0. (140 points) 2A 1H 6 Ω 4A 10 t=0 F
