In the circuit shown below, let R=40 N, XL=100 , Xc=80 N, and Es= 40 V<0°. Find the Norton equivalent circuit with respe

Post by answerhappygod »

In The Circuit Shown Below Let R 40 N Xl 100 Xc 80 N And Es 40 V 0 Find The Norton Equivalent Circuit With Respe 1
In The Circuit Shown Below Let R 40 N Xl 100 Xc 80 N And Es 40 V 0 Find The Norton Equivalent Circuit With Respe 1 (15.14 KiB) Viewed 50 times
Use superposition please

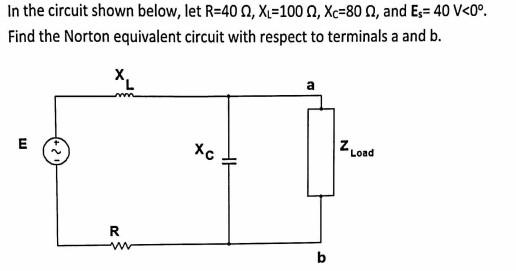

In the circuit shown below, let R=40 N, XL=100 , Xc=80 N, and Es= 40 V<0°. Find the Norton equivalent circuit with respect to terminals a and b. X w E Xc Zload HH R w b
