3. (20) points. For the circuit in Figure 3 find the total current, Ir, and the phase angle between the voltage source a

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

3. (20) points. For the circuit in Figure 3 find the total current, Ir, and the phase angle between the voltage source a

Post by answerhappygod »

3 20 Points For The Circuit In Figure 3 Find The Total Current Ir And The Phase Angle Between The Voltage Source A 1
3 20 Points For The Circuit In Figure 3 Find The Total Current Ir And The Phase Angle Between The Voltage Source A 1 (17.26 KiB) Viewed 66 times

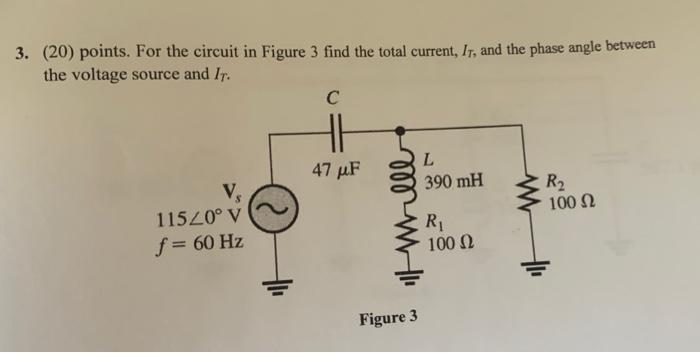

3. (20) points. For the circuit in Figure 3 find the total current, Ir, and the phase angle between the voltage source and Ir. C 47 uF ell L 390 mH R2 Vs 100 12 RI 11520° V f = 60 Hz 100 Ω Figure 3
