10. Draw the logic circuit specified by the following Verilog description module: Module Circuit_A (A, B, C, D, F); inpu
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am

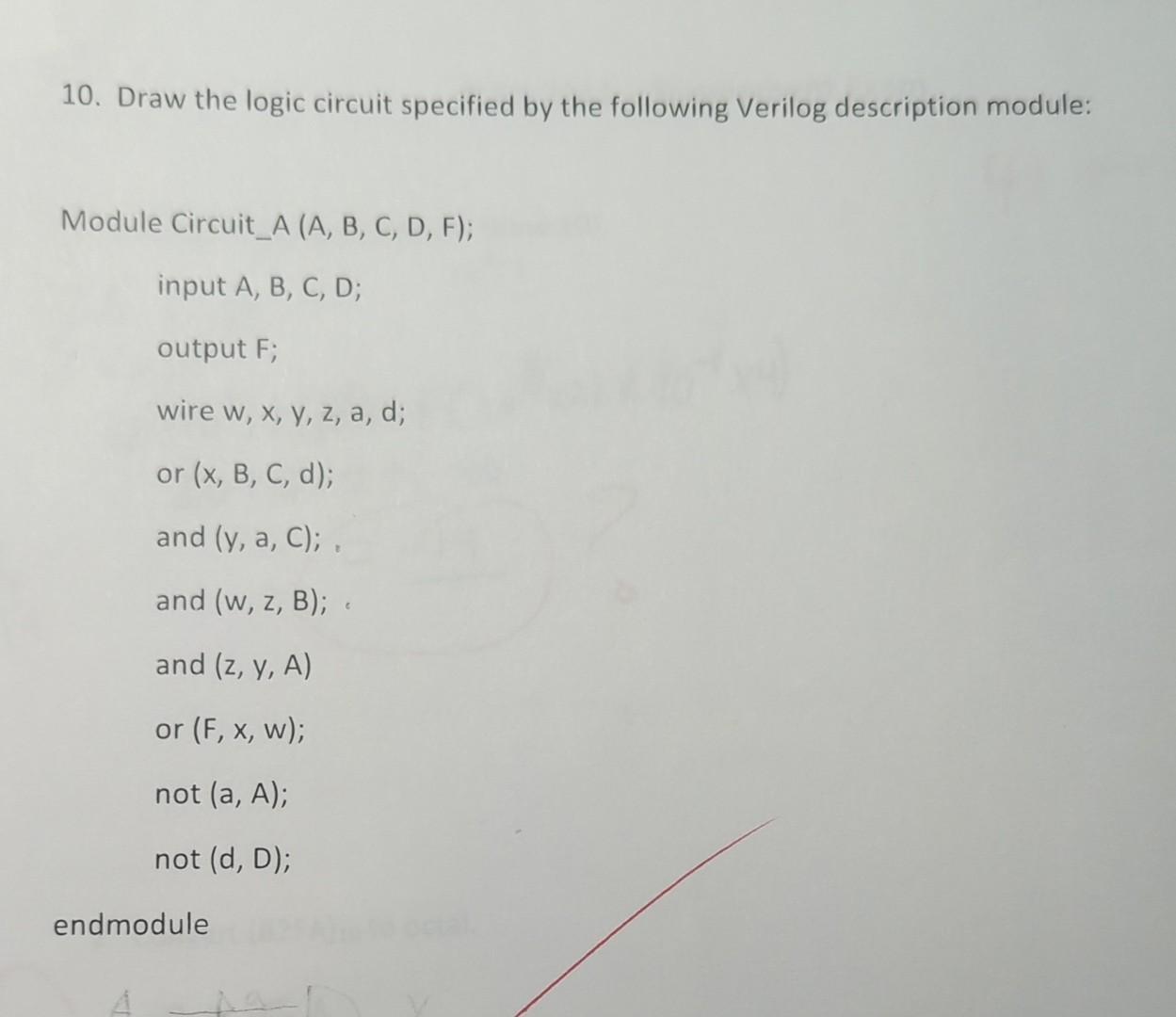

10. Draw the logic circuit specified by the following Verilog description module: Module Circuit_A (A, B, C, D, F); inpu
10. Draw the logic circuit specified by the following Verilog description module: Module Circuit_A (A, B, C, D, F); input A, B, C, D; output F; wire w, x, y, z, a, d; or (x, B, C, d); and (y, a, C); and (w, z, B); and (z, y, A) or (F, x, w); not (a, A); not (d, D); endmodule
