Using a R-9 kl resistor and other required resistors, capacitors and ideal op amps, design a high-pass unity-gain Butter

Post by answerhappygod »

Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 1
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 1 (25.35 KiB) Viewed 36 times
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 2
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 2 (28.65 KiB) Viewed 36 times
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 3
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 3 (12.31 KiB) Viewed 36 times
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 4
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 4 (10.08 KiB) Viewed 36 times
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 5
Using A R 9 Kl Resistor And Other Required Resistors Capacitors And Ideal Op Amps Design A High Pass Unity Gain Butter 5 (13.87 KiB) Viewed 36 times

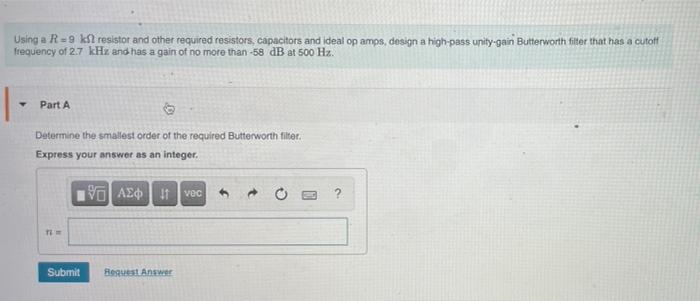

Using a R-9 kl resistor and other required resistors, capacitors and ideal op amps, design a high-pass unity-gain Butterworth filter that has a cutoff frequency of 2.7 kHz and has a gain of no more than-58 dB at 500 Hz. Part A Determine the smallest order of the required Butterworth filter. Express your answer as an integer. Η ΑΣΦ 11 νοc ? TE Submit Reguest Answer

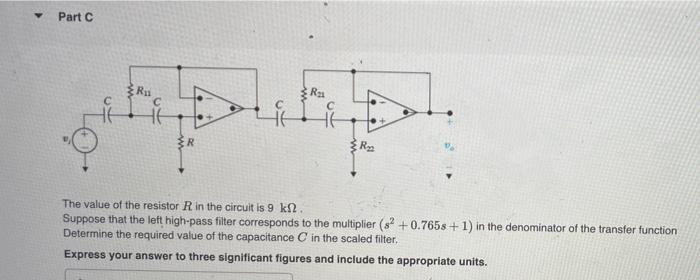

Part C R thpun 1. R The value of the resistor R in the circuit is 9 k22. Suppose that the left high-pass filter corresponds to the multiplier (sº +0.765s + 1) in the denominator of the transfer function Determine the required value of the capacitance C in the scaled filter, Express your answer to three significant figures and include the appropriate units.

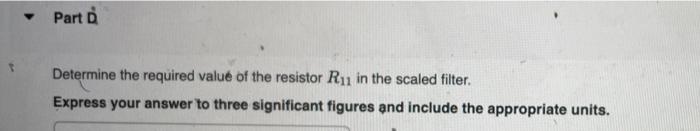

Part 8 Determine the required value of the resistor Rui in the scaled filter. Express your answer to three significant figures and include the appropriate units.

Part E Determine the required value of the resistor R21 in the scaled filter. Express your answer to three significant figures and include the appropriate units.

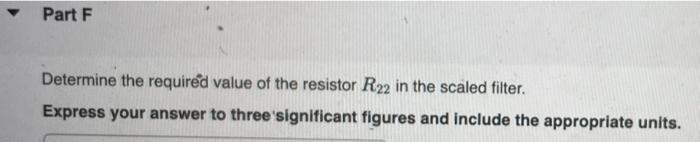

Part F Determine the required value of the resistor R22 in the scaled filter. Express your answer to three'significant figures and include the appropriate units.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
