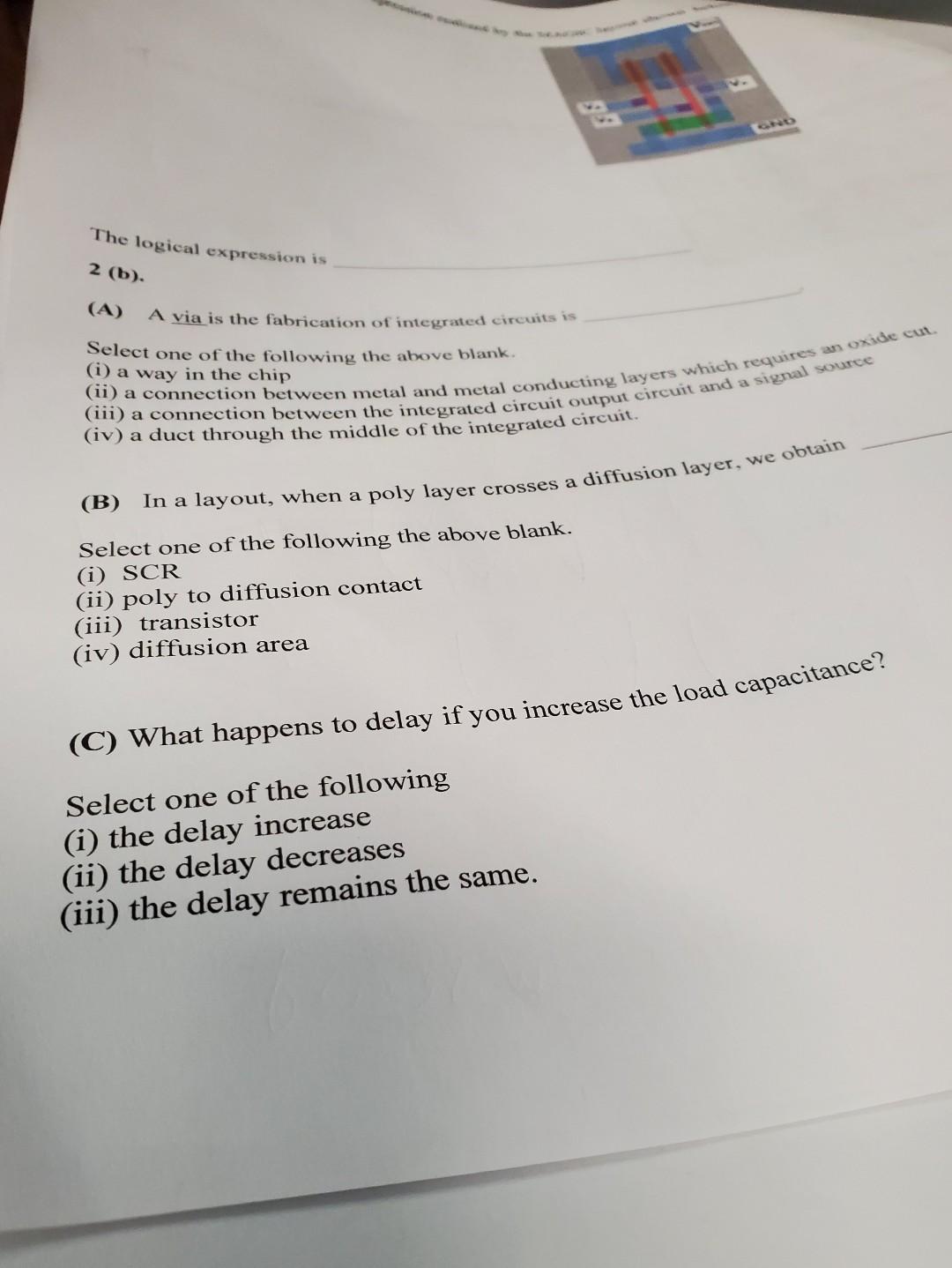

s 98 The logical expression is 2 (b). (A) A via is the fabrication of integrated circuits is Select one of the following

[answerhappygod]

S 98 The Logical Expression Is 2 B A A Via Is The Fabrication Of Integrated Circuits Is Select One Of The Following 1 (101.36 KiB) Viewed 37 times

s 98 The logical expression is 2 (b). (A) A via is the fabrication of integrated circuits is Select one of the following the above blank. (i) a way in the chip (iii) a connection between the integrated circuit output circuit and a signal source (u a connection between metal and metal conducting layers which requires an oxide cut (iv) a duct through the middle of the integrated circuit. (B) In a layout, when a poly layer crosses a diffusion layer, we obtain Select one of the following the above blank. (i) SCR (ii) poly to diffusion contact (iii) transistor (iv) diffusion area (C) What happens to delay if you increase the load capacitance? Select one of the following (i) the delay increase (ii) the delay decreases (iii) the delay remains the same.
