Problem 1 In the circuit shown below, let Ru=10, R2=50 , Xc=200, E= 4 V<30°, and 1=2 A<0° a) Find the Thevenin equivalen

Post by answerhappygod »

Problem 1 In The Circuit Shown Below Let Ru 10 R2 50 Xc 200 E 4 V 30 And 1 2 A 0 A Find The Thevenin Equivalen 1
Problem 1 In The Circuit Shown Below Let Ru 10 R2 50 Xc 200 E 4 V 30 And 1 2 A 0 A Find The Thevenin Equivalen 1 (24.26 KiB) Viewed 63 times
Use Superposition Theorem Please

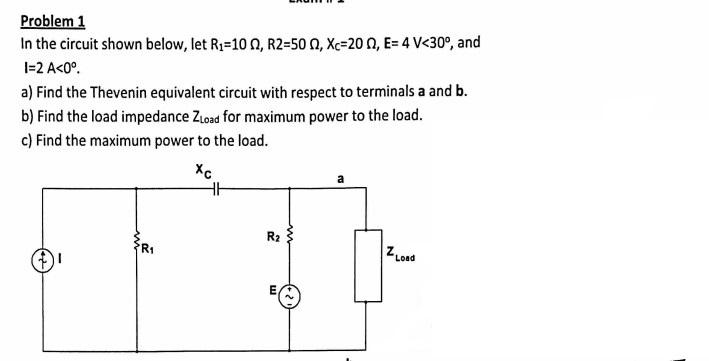

Problem 1 In the circuit shown below, let Ru=10, R2=50 , Xc=200, E= 4 V<30°, and 1=2 A<0° a) Find the Thevenin equivalent circuit with respect to terminals a and b. b) Find the load impedance Zload for maximum power to the load. c) Find the maximum power to the load. Xc HE R2 IZ Lond E
