QUESTION 1 a) Distinguish between ; (i) P-type and n-type semiconductors (ii) npn-transistor and pnp-transistor (iii) fi

[answerhappygod]

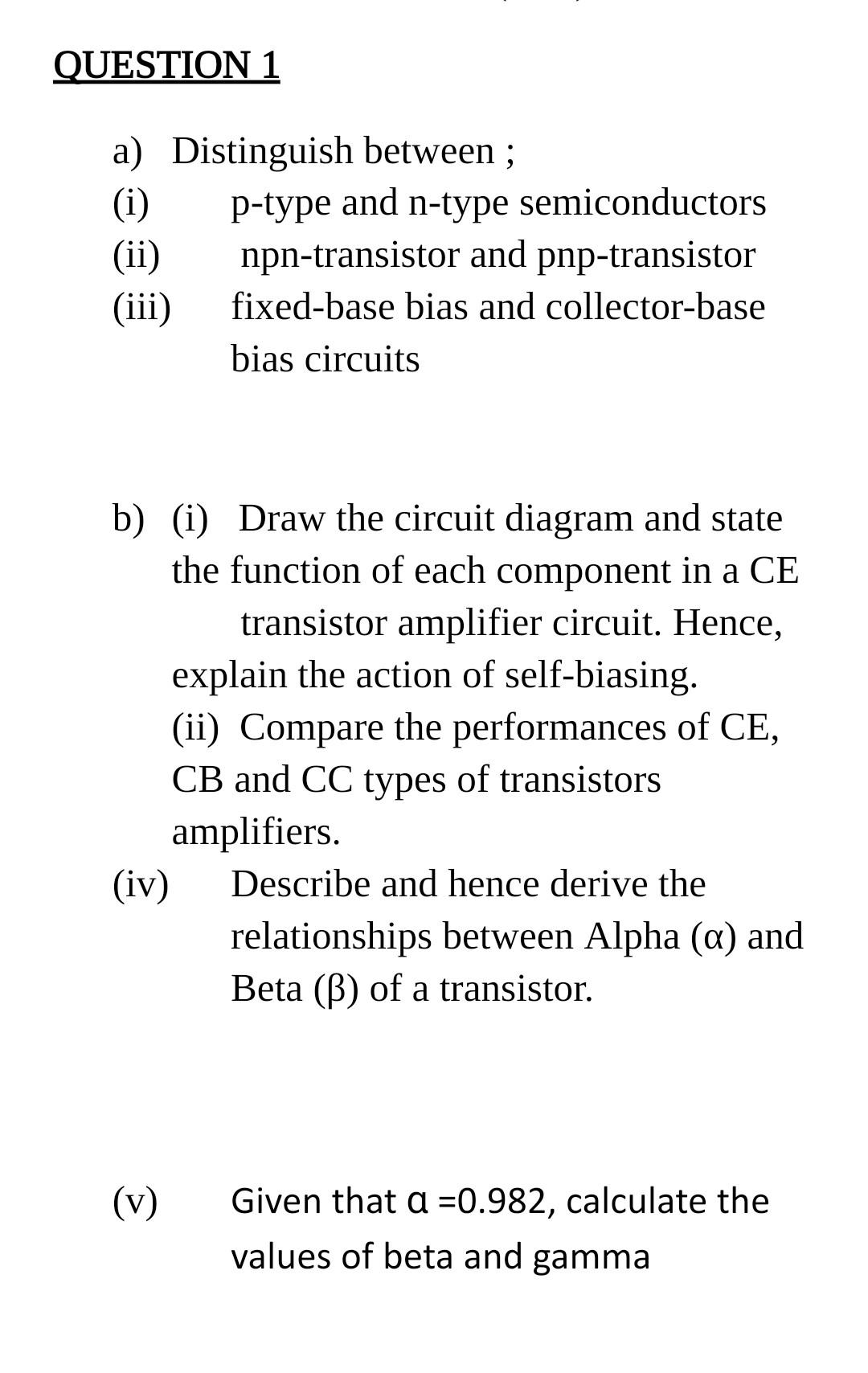

Question 1 A Distinguish Between I P Type And N Type Semiconductors Ii Npn Transistor And Pnp Transistor Iii Fi 1 (154.47 KiB) Viewed 47 times

QUESTION 1 a) Distinguish between ; (i) P-type and n-type semiconductors (ii) npn-transistor and pnp-transistor (iii) fixed-base bias and collector-base bias circuits b) (i) Draw the circuit diagram and state the function of each component in a CE transistor amplifier circuit. Hence, explain the action of self-biasing. (ii) Compare the performances of CE, CB and CC types of transistors amplifiers. (iv) Describe and hence derive the relationships between Alpha (a) and Beta () of a transistor. v (v) Given that a =0.982, calculate the values of beta and gamma
