En The Actual Question 5 15 Points How Many Resonant Frequencies Are There In The Circuit Of Figure 5 Determine The 1 (65.27 KiB) Viewed 45 times

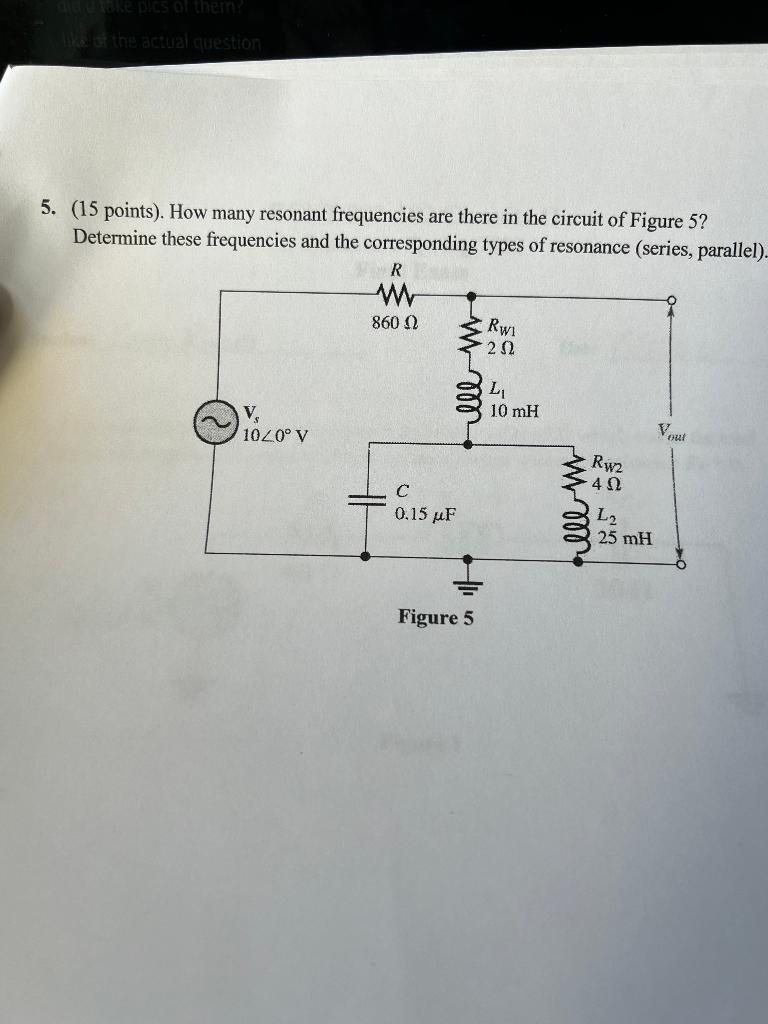

en the actual question 5. (15 points). How many resonant frequencies are there in the circuit of Figure 5? Determine these frequencies and the corresponding types of resonance (series, parallel). R w 860 Ω Rwi 212 lll wr L 10 mH V. 1020° V V Ox Rw2 422 C 0.15 ur olll wr L2 25 mH Figure 5
.. (25 points). Determine the impedance of the circuit in Figure 4 at the given frequency. Rw 5012 100 kHz w R 4.7 kΩ W 20 C 507.1 pF L 5 mH Figure 4
3. (20) points. For the circuit in Figure 3 find the total current, It, and the phase angle between the voltage source and Ir. C 47 uF L 390 mH W Well R2 100 12 11520° V f = 60 Hz R 100 Figure 3
