Question 5 (30pts): For circuit shown below, find i(t), the current through the inductor. Assume the switch was in posit

Post by answerhappygod »

Question 5 30pts For Circuit Shown Below Find I T The Current Through The Inductor Assume The Switch Was In Posit 1
Question 5 30pts For Circuit Shown Below Find I T The Current Through The Inductor Assume The Switch Was In Posit 1 (153.7 KiB) Viewed 40 times

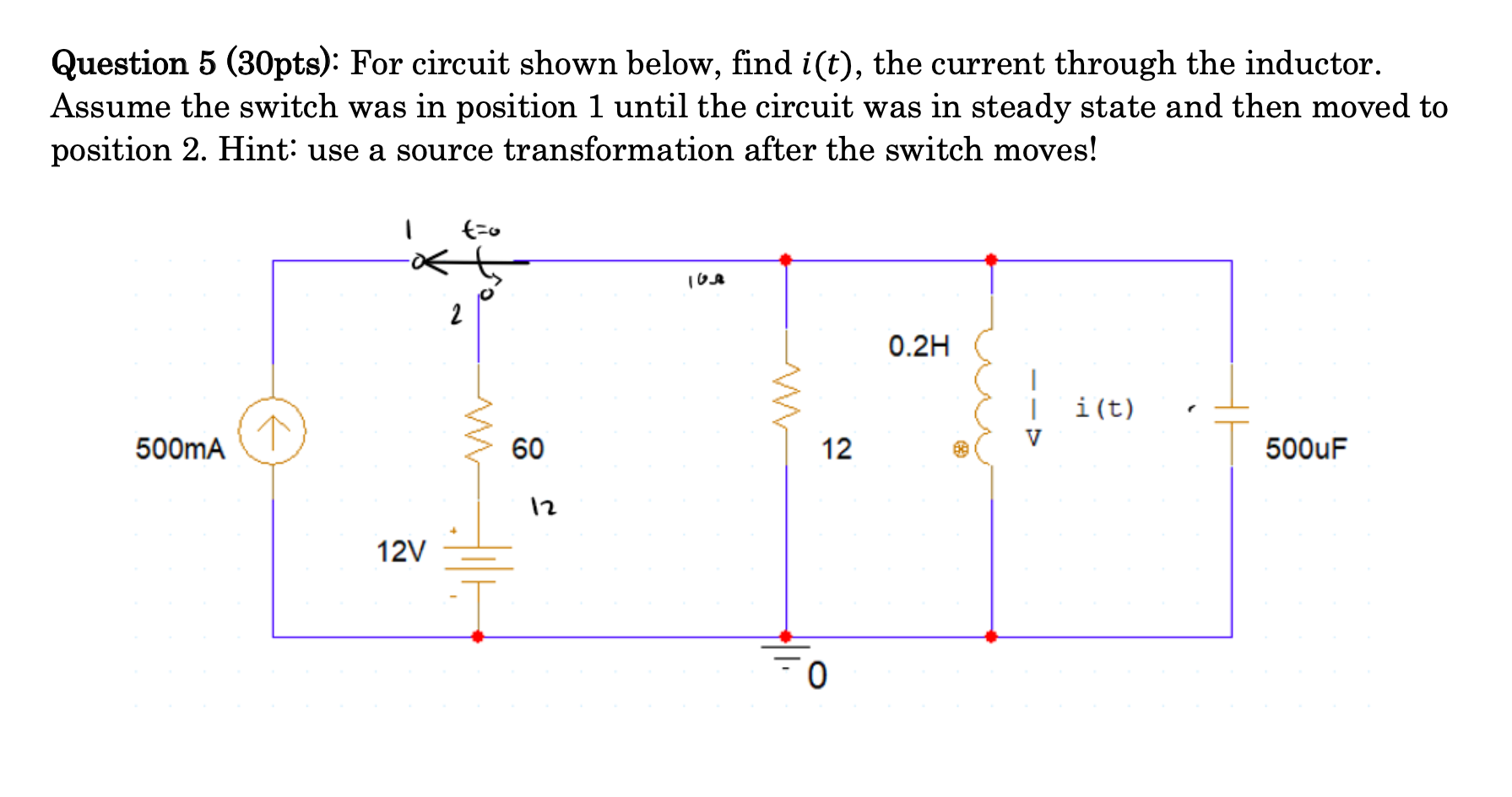

Question 5 (30pts): For circuit shown below, find i(t), the current through the inductor. Assume the switch was in position 1 until the circuit was in steady state and then moved to position 2. Hint: use a source transformation after the switch moves! to IVA 2 0.2H i(t) V 500mA 60 12 500uF 12 12V HIH
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
