Problem 4: The circuit below contains an ideal transformer and two sources Vs = 100200 Volts and Is = 100 20° Amps. (20

Post by answerhappygod »

Problem 4 The Circuit Below Contains An Ideal Transformer And Two Sources Vs 100200 Volts And Is 100 20 Amps 20 1
Problem 4 The Circuit Below Contains An Ideal Transformer And Two Sources Vs 100200 Volts And Is 100 20 Amps 20 1 (64.73 KiB) Viewed 54 times

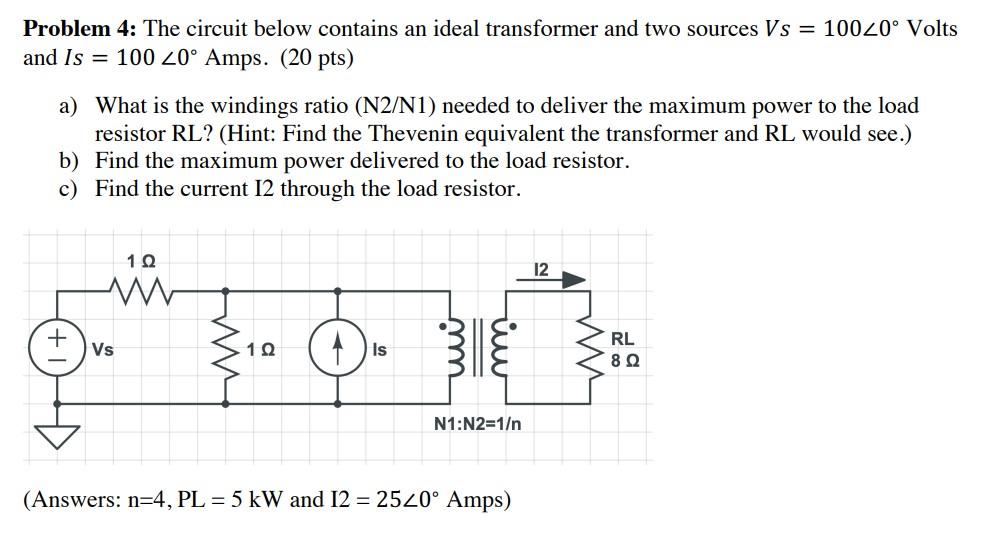

Problem 4: The circuit below contains an ideal transformer and two sources Vs = 100200 Volts and Is = 100 20° Amps. (20 pts) a) What is the windings ratio (N2/N1) needed to deliver the maximum power to the load resistor RL? (Hint: Find the Thevenin equivalent the transformer and RL would see.) b) Find the maximum power delivered to the load resistor. c) Find the current 12 through the load resistor. 102 12 + Vs 10 非 Is wi iu RL 8Ω N1:N2=1/n (Answers: n=4, PL = 5 kW and 12 = 2520° Amps)
