Problem 2: 1- Determine the Norton equivalent of the circuit seen by the load, RL, in the circuit below. 2- Deduce Theve

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 2: 1- Determine the Norton equivalent of the circuit seen by the load, RL, in the circuit below. 2- Deduce Theve

Post by answerhappygod »

Problem 2 1 Determine The Norton Equivalent Of The Circuit Seen By The Load Rl In The Circuit Below 2 Deduce Theve 1
Problem 2 1 Determine The Norton Equivalent Of The Circuit Seen By The Load Rl In The Circuit Below 2 Deduce Theve 1 (34.04 KiB) Viewed 62 times

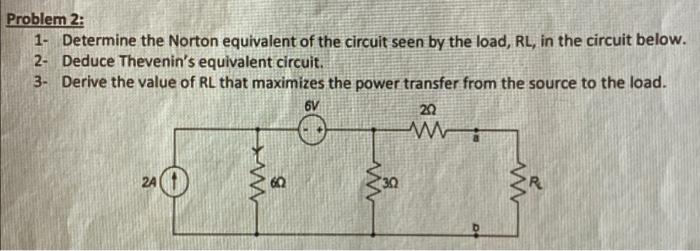

Problem 2: 1- Determine the Norton equivalent of the circuit seen by the load, RL, in the circuit below. 2- Deduce Thevenin's equivalent circuit. 3- Derive the value of RL that maximizes the power transfer from the source to the load. 6V 22 M M 24 60
