5. A buck-boost converter supplied from a 12-V dc source operates with the switching frequency of 200 kHz and the output

Post by answerhappygod »

5 A Buck Boost Converter Supplied From A 12 V Dc Source Operates With The Switching Frequency Of 200 Khz And The Output 1
5 A Buck Boost Converter Supplied From A 12 V Dc Source Operates With The Switching Frequency Of 200 Khz And The Output 1 (22.03 KiB) Viewed 43 times

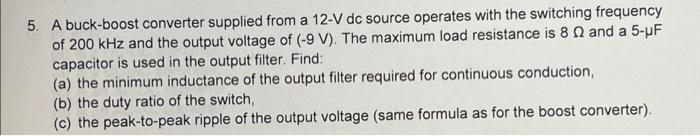

5. A buck-boost converter supplied from a 12-V dc source operates with the switching frequency of 200 kHz and the output voltage of (-9 V). The maximum load resistance is 8 and a 5-uF capacitor is used in the output filter. Find: (a) the minimum inductance of the output filter required for continuous conduction, (b) the duty ratio of the switch, (c) the peak-to-peak ripple of the output voltage (same formula as for the boost converter).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
