Components are to be stamped using stamping machine. A double acting cylinder is used to push the die attached down to a

Post by answerhappygod »

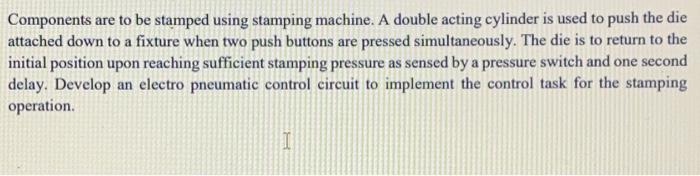

Components Are To Be Stamped Using Stamping Machine A Double Acting Cylinder Is Used To Push The Die Attached Down To A 1
Components Are To Be Stamped Using Stamping Machine A Double Acting Cylinder Is Used To Push The Die Attached Down To A 1 (25.53 KiB) Viewed 60 times
Components are to be stamped using stamping machine. A double acting cylinder is used to push the die attached down to a fixture when two push buttons are pressed simultaneously. The die is to return to the initial position upon reaching sufficient stamping pressure as sensed by a pressure switch and one second delay. Develop an electro pneumatic control circuit to implement the control task for the stamping operation. B
