QUESTION 2 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive comp

Post by answerhappygod »

Question 2 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1
Question 2 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1 (17 KiB) Viewed 42 times

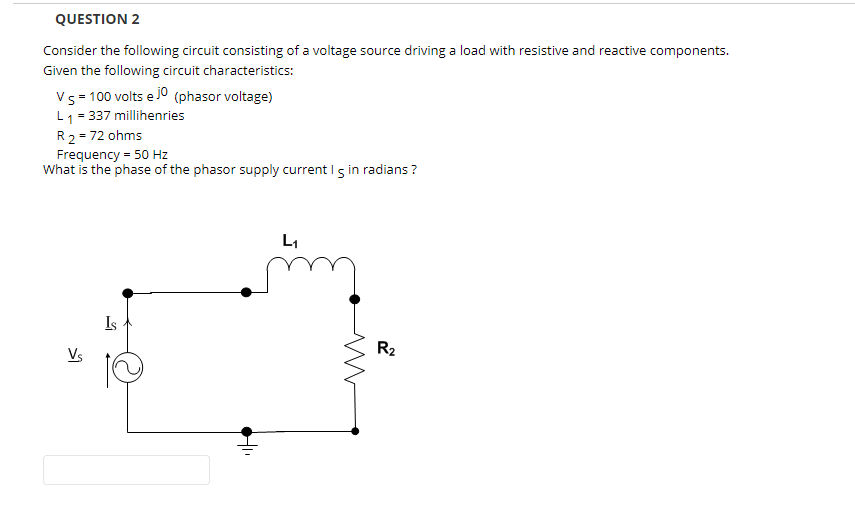

QUESTION 2 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive components. Given the following circuit characteristics: Vs= 100 volts e jo (phasor voltage) L1 = 337 millihenries R2 = 72 ohms Frequency - 50 Hz What is the phase of the phasor supply current is in radians ? L1 IS Vs R2 w
