QUESTION 1 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive comp

Post by answerhappygod »

Question 1 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1
Question 1 Consider The Following Circuit Consisting Of A Voltage Source Driving A Load With Resistive And Reactive Comp 1 (17.23 KiB) Viewed 34 times

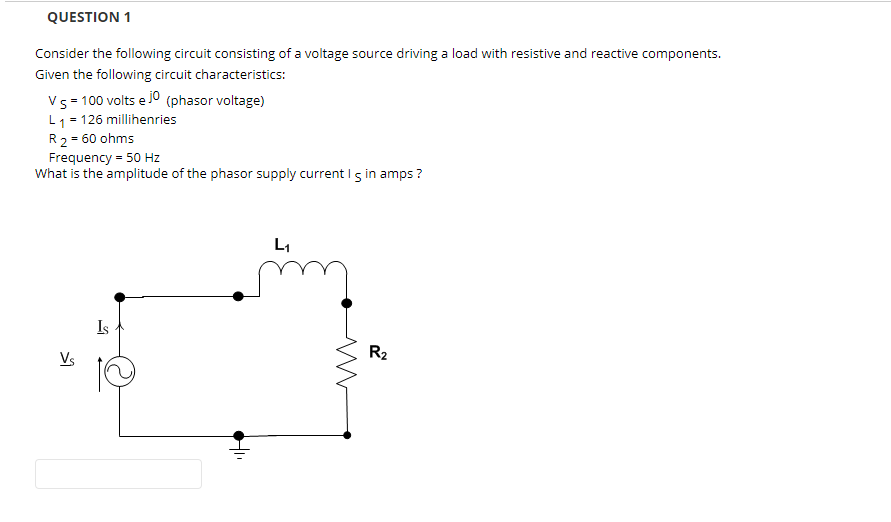

QUESTION 1 Consider the following circuit consisting of a voltage source driving a load with resistive and reactive components. Given the following circuit characteristics: Vs= 100 volts e jo (phasor voltage) L1 = 126 millihenries R2 = 60 ohms Frequency - 50 Hz What is the amplitude of the phasor supply current is in amps ? L1 IS w Vs R2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
