9-29The circuit in Figure 9-78 uses three two-input multiplexers (Figure 9-19). Determine the function performed by this

Post by answerhappygod »

9 29the Circuit In Figure 9 78 Uses Three Two Input Multiplexers Figure 9 19 Determine The Function Performed By This 1
9 29the Circuit In Figure 9 78 Uses Three Two Input Multiplexers Figure 9 19 Determine The Function Performed By This 1 (150.75 KiB) Viewed 55 times

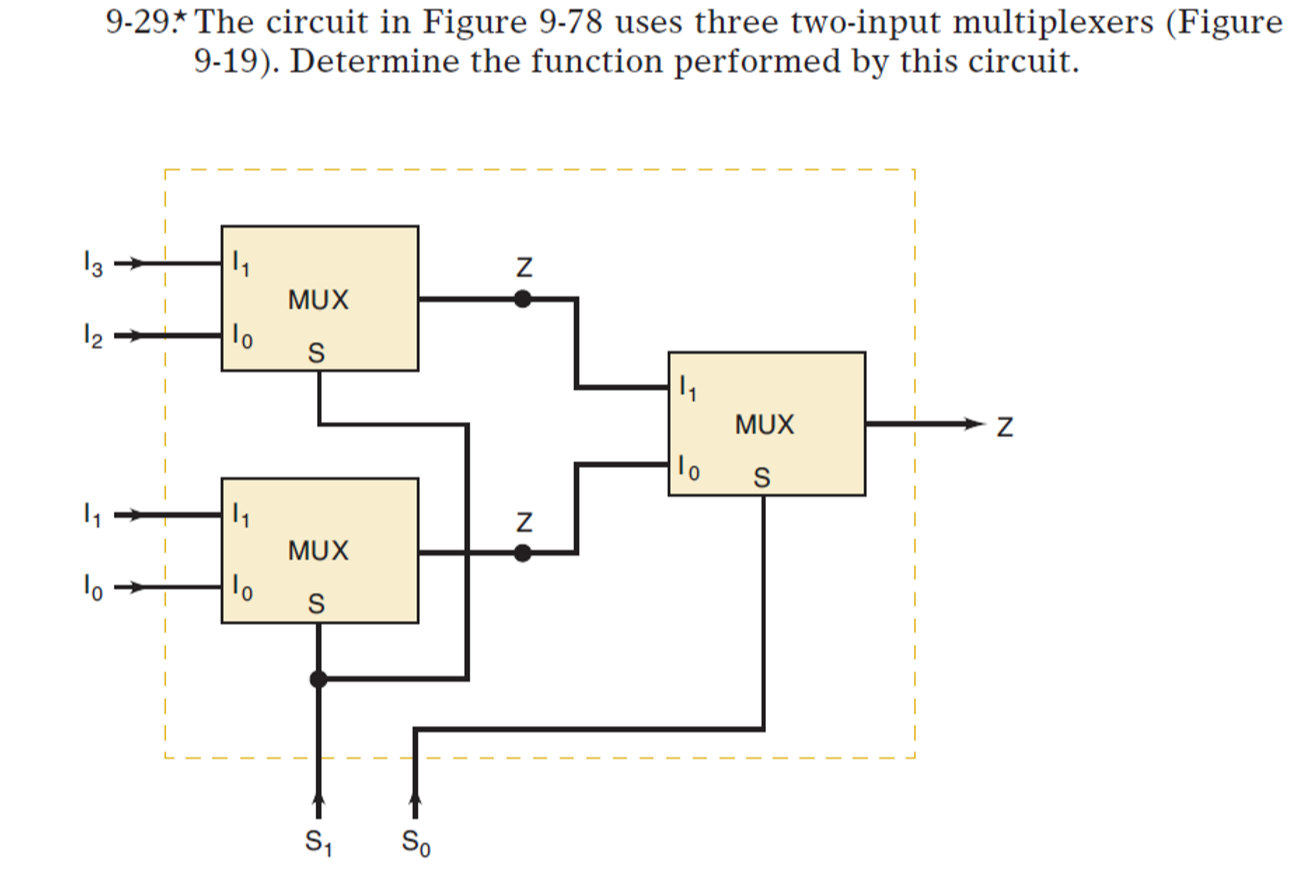

9-29The circuit in Figure 9-78 uses three two-input multiplexers (Figure 9-19). Determine the function performed by this circuit. 13 4 Z NO MUX 12 10 s 11 MUX N 10 S 4 Ν) MUX 10 To S sso
