Given the system below, design an ideal derivative compensator to yield a 16% overshoot with a threefold reduction in se

Post by answerhappygod »

Given The System Below Design An Ideal Derivative Compensator To Yield A 16 Overshoot With A Threefold Reduction In Se 1
Given The System Below Design An Ideal Derivative Compensator To Yield A 16 Overshoot With A Threefold Reduction In Se 1 (35.45 KiB) Viewed 29 times

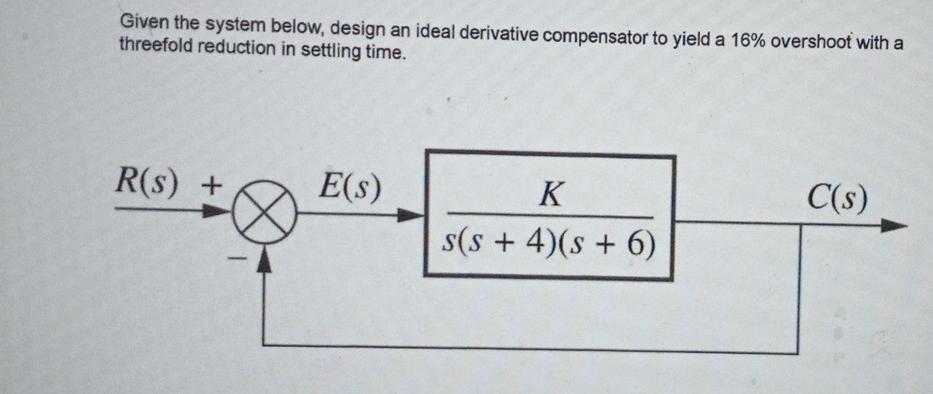

Given the system below, design an ideal derivative compensator to yield a 16% overshoot with a threefold reduction in settling time. R(S) + E(S) C(s) K s(s + 4)(8 + 6)
