Consider a parallel plate capacitor with the plate surface area axb and distance between the plates d. A nonconducting s

[answerhappygod]

Consider A Parallel Plate Capacitor With The Plate Surface Area Axb And Distance Between The Plates D A Nonconducting S 1 (31.12 KiB) Viewed 47 times

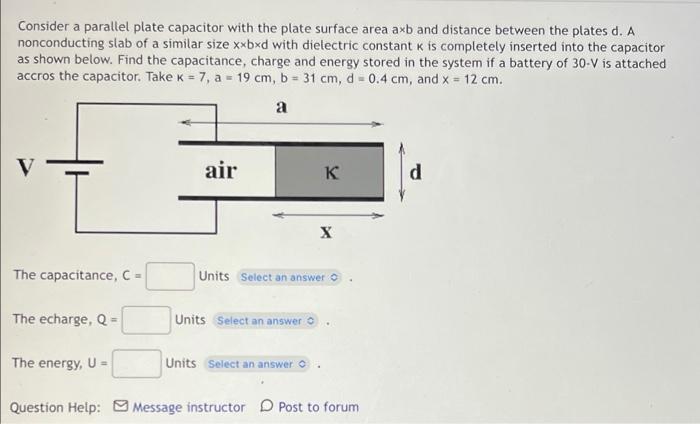

Consider a parallel plate capacitor with the plate surface area axb and distance between the plates d. A nonconducting slab of a similar size xxbxd with dielectric constant K is completely inserted into the capacitor as shown below. Find the capacitance, charge and energy stored in the system if a battery of 30-V is attached accros the capacitor. Take K = 7, a = 19 cm, b = 31 cm, d = 0.4 cm, and x = 12 cm. a air K d X The capacitance, C- Units Select an answer o The echarge, Q = Units Select an answer o The energy, U- Units Select an answer o Question Help: Message instructor D Post to forum
