8. Sequence detector, input X. output Z. Network outputs F=0 unless it sees sequence 100 or 000 where F=1. The network r

[answerhappygod]

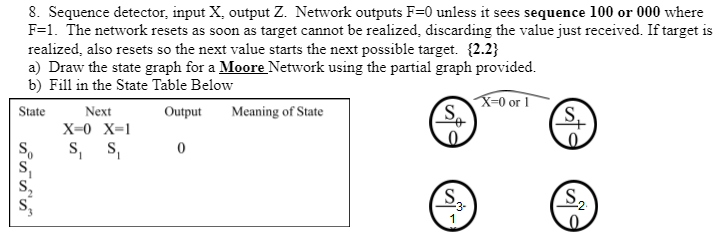

8 Sequence Detector Input X Output Z Network Outputs F 0 Unless It Sees Sequence 100 Or 000 Where F 1 The Network R 1 (30.89 KiB) Viewed 58 times

Could someone please help me understand this problem. I'll give
thumbs up!
8. Sequence detector, input X. output Z. Network outputs F=0 unless it sees sequence 100 or 000 where F=1. The network resets as soon as target cannot be realized, discarding the value just received. If target is realized, also resets so the next value starts the next possible target. {2.2} a) Draw the state graph for a Moore Network using the partial graph provided. b) Fill in the State Table Below State X=0 or 1 Next Output Meaning of State X=0 X=1 S. 0 S. 0 SS 0 s 1 S2 0
