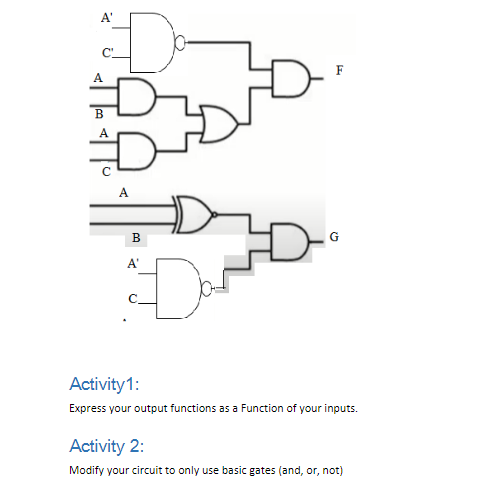

A Do F A B A B G A D Activity 1 Express Your Output Functions As A Function Of Your Inputs Activity 2 Modify Your Cir 1 (34.29 KiB) Viewed 56 times
A Do F A B A B G A D Activity 1: Express your output functions as a Function of your inputs. Activity 2: Modify your circuit to only use basic gates (and, or, not)
Activity 3: Simplify your circuit to represent minimal expressions using Boolean algebra then confirm results using K-maps. Activity 4: Implement your circuit - this time- using decoders. Activity 5: Draw the C-MOS circuit representation of the G Function (check the appendix of the book or online material-for CMOs representations of the different gates: and, or, not) Activity 6: Use a simulator of your choice (such as Logisim) to realize the circuit then verify that it functions correctly (record a video of the simulation and provide me with it's link)
