Amplitude 50 V, frequency 100 Hz, phase is 0.
a) the expression of the current (I think it is 50sin(200pit)??)
b) Calculate the effective tension that enters and the current i.
c) calculate the phase difference of the current I

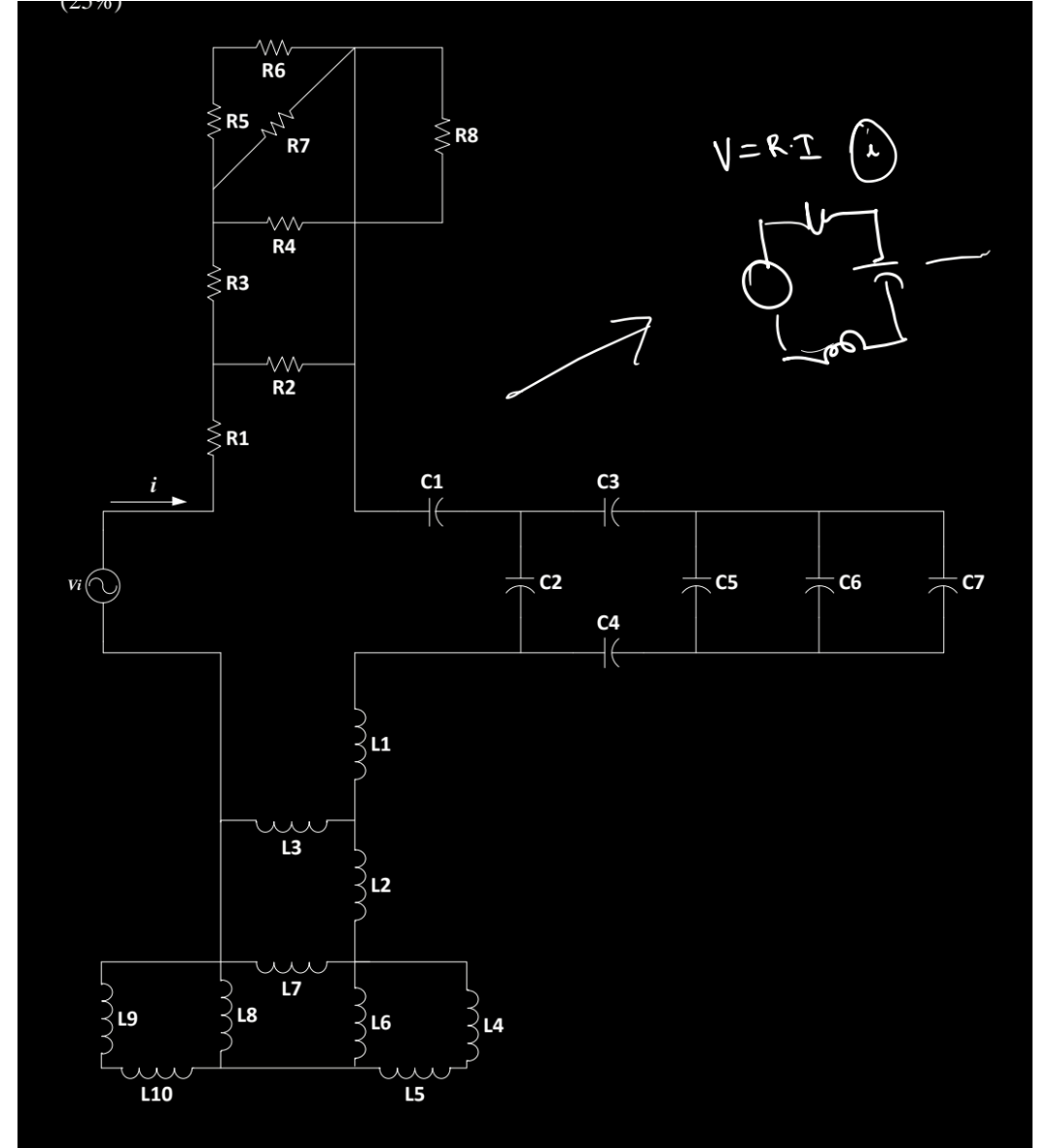

and all the resistances have a value of 500 ohms and the capacitances 10 microF and the L value of 100mH

Amplitude 50 V Frequency 100 Hz Phase Is 0 A The Expression Of The Current I Think It Is 50sin 200pit B Calcul 1 (93.24 KiB) Viewed 42 times

and I have that

Amplitude 50 V Frequency 100 Hz Phase Is 0 A The Expression Of The Current I Think It Is 50sin 200pit B Calcul 2 (199.55 KiB) Viewed 42 times

CD70) R6 (RS R8 농 R7 VERT W R4 R3 " R2 (R1 C1 C3 It Vi C2 CS C6 C7 C4 L1 L3 L2. L7 (L9 (L8 L6 L4 L10 L5

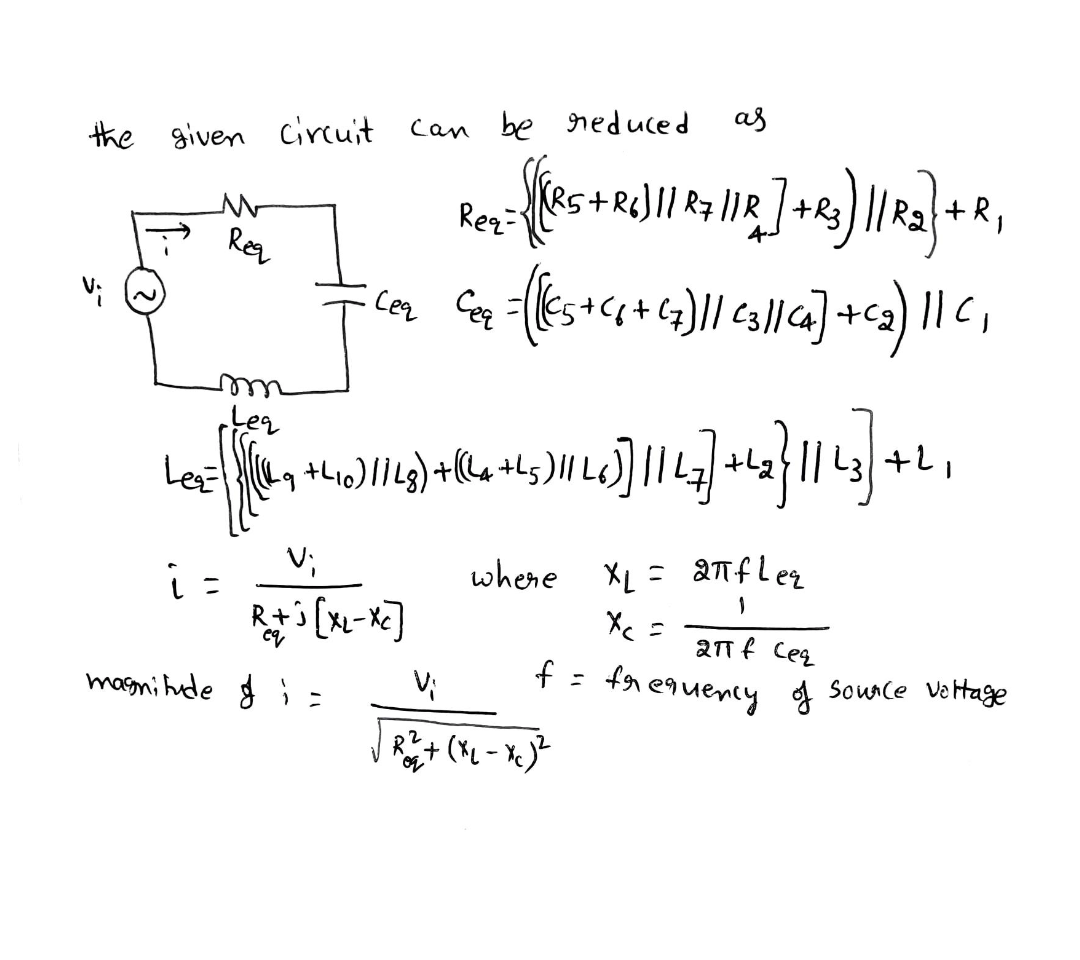

the given circuit can be reduced as M Reqt +R Req Rez R//+R, { (85+rs)!! R7 118 ] +R3 ) || R2 tin (les+e+()}/03/16] +ca) 114, Сеч ceq mm leg Les 31649 +h)1143) +(6x +Ls)II 16 ), 115)1147+ta?114+1, وان L police Xc= eq V is where XL = a1.f Leg R; [x-x] magnitude og i V fa frequency of source voltage RO< + (x4 – xc)? anf ceq R2
