Solve voltage and resistance for cases A and B. For A, assume D1 and D2 are ideal. For B, assume D1 and D2 are non-ideal

Post by answerhappygod »

Solve voltage and resistance for cases A and B.
For A, assume D1 and D2 are ideal.
For B, assume D1 and D2 are non-ideal. V_d = 0.7

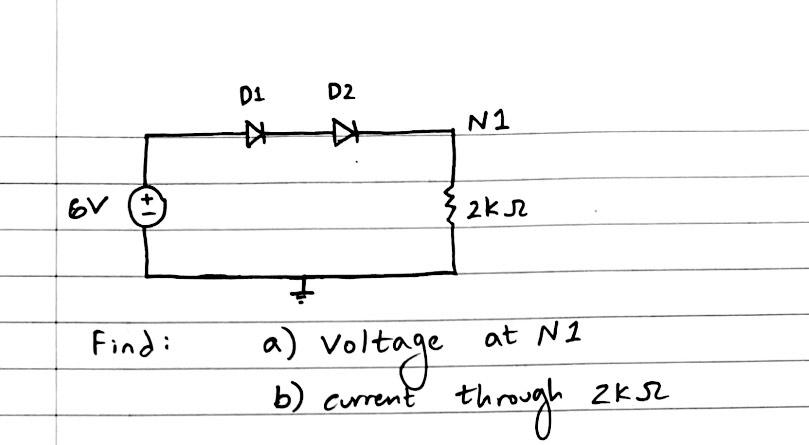

Solve Voltage And Resistance For Cases A And B For A Assume D1 And D2 Are Ideal For B Assume D1 And D2 Are Non Ideal 1
Solve Voltage And Resistance For Cases A And B For A Assume D1 And D2 Are Ideal For B Assume D1 And D2 Are Non Ideal 1 (29.65 KiB) Viewed 31 times
D1 D2 本 At N1 6V akr Find: at Ni a) Vol b) current voltage through 2k
