Q2): A circular-shaped area with radius of 2km has a uniformly distributed load with load density of 796kVA/ km². This a

Post by answerhappygod »

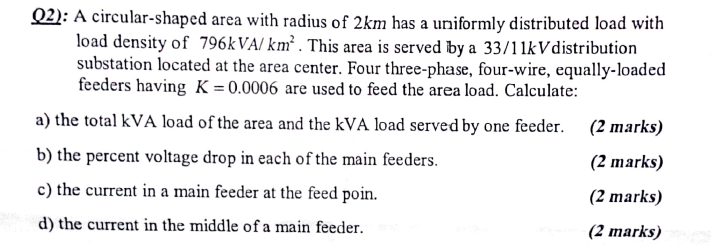

Q2 A Circular Shaped Area With Radius Of 2km Has A Uniformly Distributed Load With Load Density Of 796kva Km This A 1
Q2 A Circular Shaped Area With Radius Of 2km Has A Uniformly Distributed Load With Load Density Of 796kva Km This A 1 (137.07 KiB) Viewed 30 times
Q2): A circular-shaped area with radius of 2km has a uniformly distributed load with load density of 796kVA/ km². This area is served by a 33/11kV distribution substation located at the area center. Four three-phase, four-wire, equally-loaded feeders having K = 0.0006 are used to feed the area load. Calculate: a) the total kVA load of the area and the kVA load served by one feeder. (2 marks) b) the percent voltage drop in each of the main feeders. (2 marks) c) the current in a main feeder at the feed poin. (2 marks) d) the current in the middle of a main feeder. (2 marks)
