There are 7 choices (a to f). Please select all that apply and give explanation

[answerhappygod]

There are 7 choices (a to f). Please select all
that apply and give explanation

There Are 7 Choices A To F Please Select All That Apply And Give Explanation 1 (159.39 KiB) Viewed 31 times

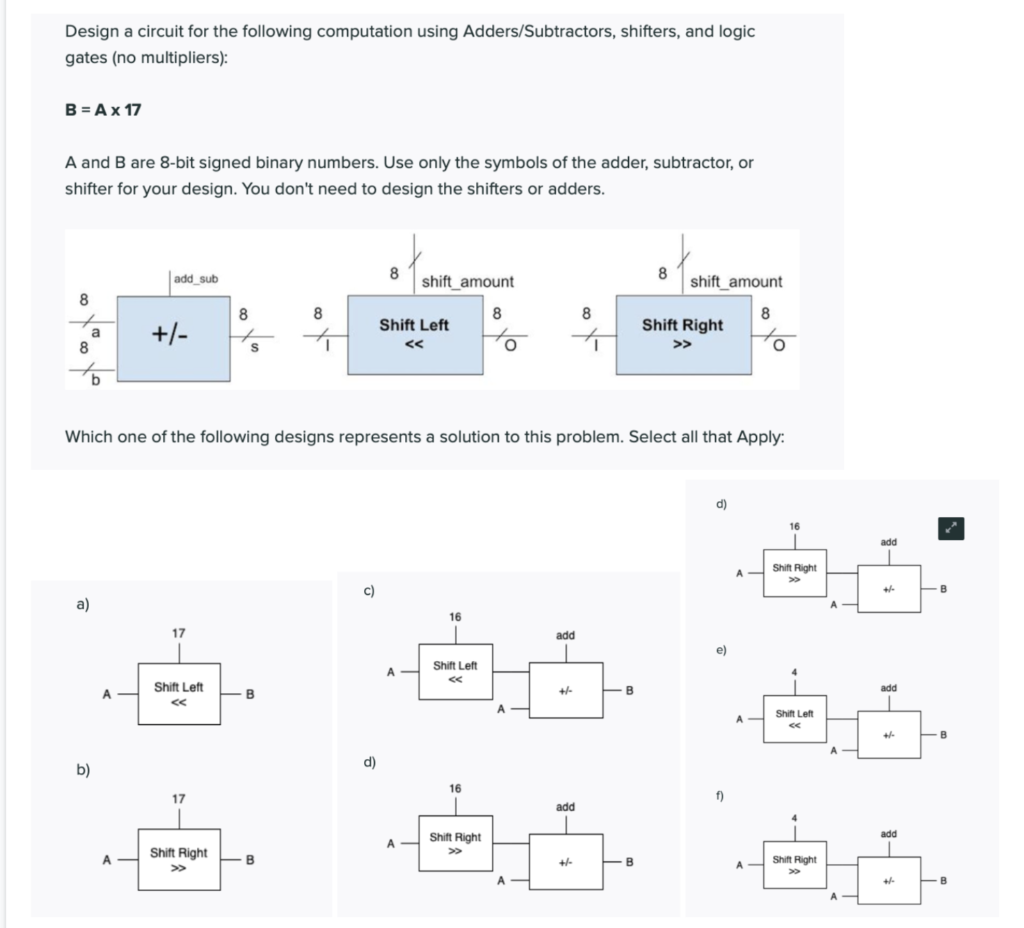

Design a circuit for the following computation using Adders/Subtractors, shifters, and logic gates (no multipliers): B= A x 17 A and B are 8-bit signed binary numbers. Use only the symbols of the adder, subtractor, or shifter for your design. You don't need to design the shifters or adders. add sub 8 8 8 shift_amount 8 Shift Right 8 8 shift_amount 8 Shift Left << 8 8 a 8 +/- ts T T >>> b Which one of the following designs represents a solution to this problem. Select all that Apply: d) d) 16 add Shit Right А >> c) +- -B a) 16 17 add e) Shift Left А + Shift Left << А add B B B A Shift Left ਤ + -B d) ) b) 16 17 f) add Shift Right add A Shift Right B >>> А B A Shift Right >> +
