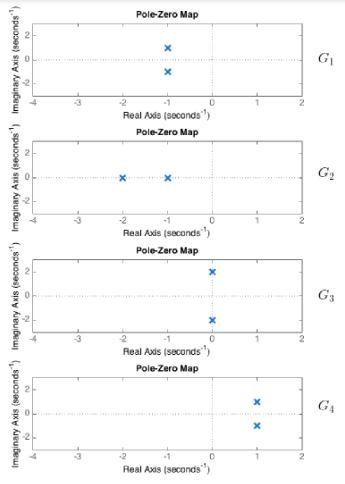

Figure shows the P-Z plot of 4 different
systems
Which of the systems will have oscillatory and non-oscillatory
unit step response? Why?
For each system, next to the P-Z plot, draw a rough sketch of
the unit step response. Assume all systems have DC gain = 0.5.
Figure Shows The P Z Plot Of 4 Different Systems Which Of The Systems Will Have Oscillatory And Non Oscillatory Unit Ste 1 (18.36 KiB) Viewed 28 times
Pole-Zero Map G 19 D Real Axis (seconds) Pole-Zero Map G2 ง Imaginary Axis (seconds) Imaginary Axis (seconda) Imaginary Axis (seconds) Imaginary Axis (seconds 0 Real Axis (seconds) Pole-Zero Map X G: X x 0 Real Axds (seconds) Pole-Zero Map х 19 X i 2 Real Axis seconds)
