Question No. 2 Marks: Assume a leading edge triggered J-K flip flop. For the inputs shown, draw the outputs 3 CLK PRE J

[answerhappygod]

Question No 2 Marks Assume A Leading Edge Triggered J K Flip Flop For The Inputs Shown Draw The Outputs 3 Clk Pre J 1 (17.39 KiB) Viewed 27 times

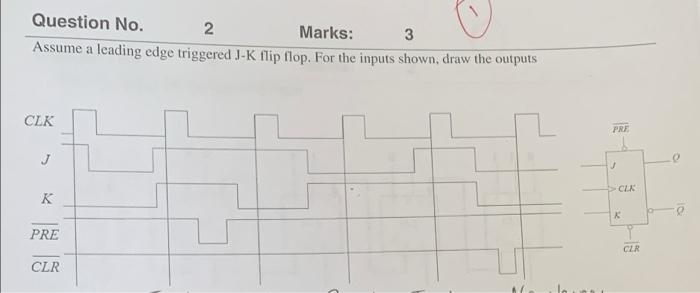

Question No 2 Marks Assume A Leading Edge Triggered J K Flip Flop For The Inputs Shown Draw The Outputs 3 Clk Pre J 2 (22.02 KiB) Viewed 27 times

Question No 2 Marks Assume A Leading Edge Triggered J K Flip Flop For The Inputs Shown Draw The Outputs 3 Clk Pre J 3 (22.02 KiB) Viewed 27 times

Question No. 2 Marks: Assume a leading edge triggered J-K flip flop. For the inputs shown, draw the outputs 3 CLK PRE J u - CLK K PRE CLR CLR

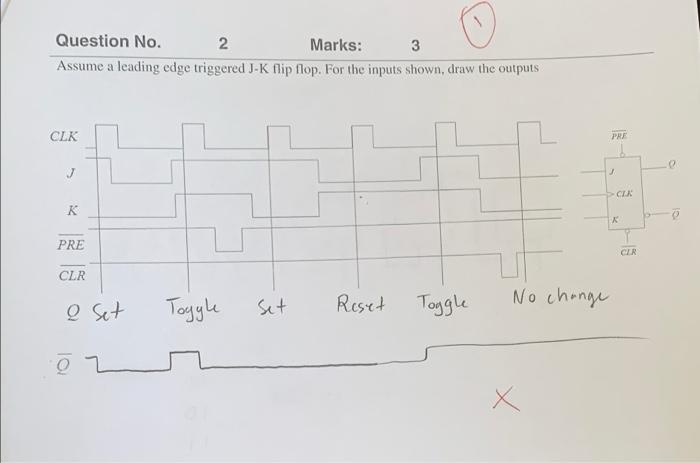

Question No. 2 Marks: 3 Assume a leading edge triggered J-K flip flop. For the inputs shown, draw the outputs CLK PRU . CL K K PRE CER CLR No change e Set Toggle Set Reset Toggle O 0 Z Х
