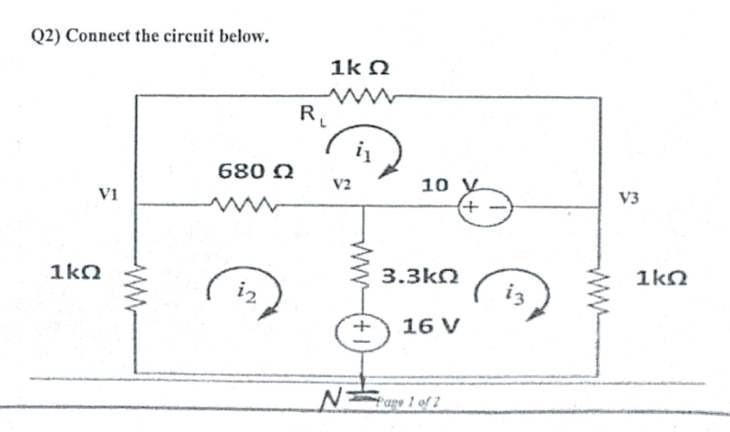

Q2) Connect the circuit below. 1k Ω R. 680 Ω V2 10 V V1 + V3 1kΩ ΑΛΛΑ 3.3kΩ 1kΩ i2 ε + 16 V Nape 1 of 2
Q3) 3.1. Measure the mesh currents in the above circuit. It I2 13 3.2 Measure the nodal voltages (V1 V2 and V3). V V2 V3 (4) 4.1. Measure the Thevenin equivalent circuit (Vth , Ruh) as seen to the below of RL. Explain the method you used to calculate Rth 9 Vth Rth А.
