CONTROL SYSTEMS QUESTION: determine values from 2 PI controllers. please use matlab to solve. im new to matlab and havin
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
CONTROL SYSTEMS QUESTION: determine values from 2 PI controllers. please use matlab to solve. im new to matlab and havin
CONTROL SYSTEMS QUESTION: determine values from 2 PI controllers. please use matlab to solve. im new to matlab and having hard time

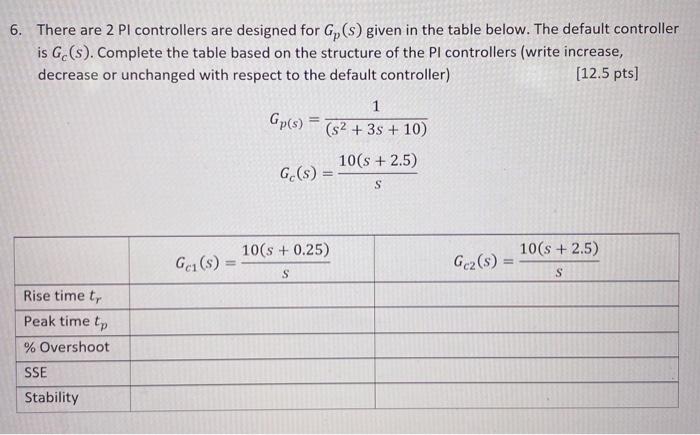

6. There are 2 Pl controllers are designed for G, (s) given in the table below. The default controller is Ge(s). Complete the table based on the structure of the PI controllers (write increase, decrease or unchanged with respect to the default controller) (12.5 pts) 1 Gp(s) = (s2 + 3s + 10) 10(s +2.5) Ge(s) S 10(s +0.25) 10(s + 2.5) Ge(s) Ge(s) = S S Rise time ty Peak time to % Overshoot SSE Stability
6. There are 2 Pl controllers are designed for G, (s) given in the table below. The default controller is Ge(s). Complete the table based on the structure of the PI controllers (write increase, decrease or unchanged with respect to the default controller) (12.5 pts) 1 Gp(s) = (s2 + 3s + 10) 10(s +2.5) Ge(s) S 10(s +0.25) 10(s + 2.5) Ge(s) Ge(s) = S S Rise time ty Peak time to % Overshoot SSE Stability
