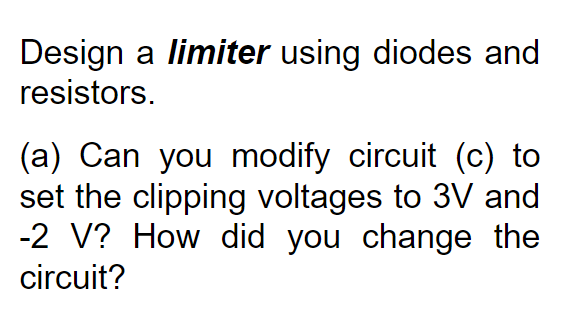

Design a limiter using diodes and resistors. (a) Can you modify circuit (c) to set the clipping voltages to 3V and -2 V? How did you change the circuit?

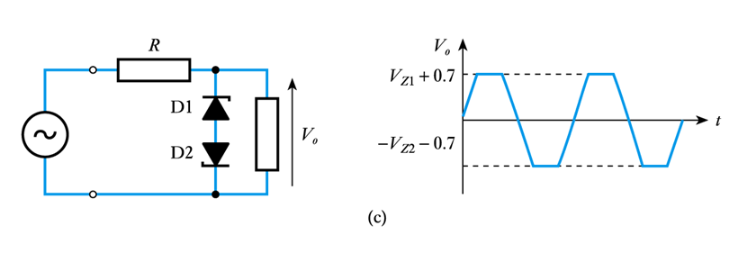

R VA Vzı +0.7 D1 V. 44 " D2 -V 22-0.7 (c)
