Perform RF Budget Analysis using /Matlab/ for the communication system below. MX 2 Band Image Select Reject Filter LNA F

[answerhappygod]

Perform Rf Budget Analysis Using Matlab For The Communication System Below Mx 2 Band Image Select Reject Filter Lna F 1 (85.05 KiB) Viewed 33 times

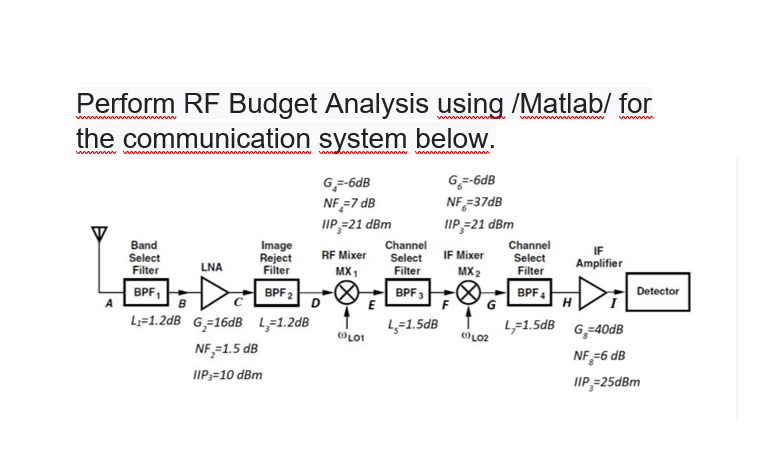

Perform RF Budget Analysis using /Matlab/ for the communication system below. MX 2 Band Image Select Reject Filter LNA Filter BPF L3=1.2dB G=16dB L=1.2dB NF,=1.5 dB TIP:=10 dBm DBPF?] G--6dB G--6dB NF,=7 dB NF=37dB IIP,=21 dBm TIP=21 dBm Channel Channel IF RF Mixer Select IF Mixer Select MX1 Amplifier Filter Filter BPF BPF Detector E G H 1=1.5dB 1,-1.5dB G,=40dB L01 NF =6 dB TIP=25dBm : LO2
