Perform RF Budget Analysis using ADS for the following communication system G,-6dB G=-6dB NF =7 dB NF=37dB TIP=21 dBm HI

[answerhappygod]

Perform Rf Budget Analysis Using Ads For The Following Communication System G 6db G 6db Nf 7 Db Nf 37db Tip 21 Dbm Hi 1 (84.64 KiB) Viewed 54 times

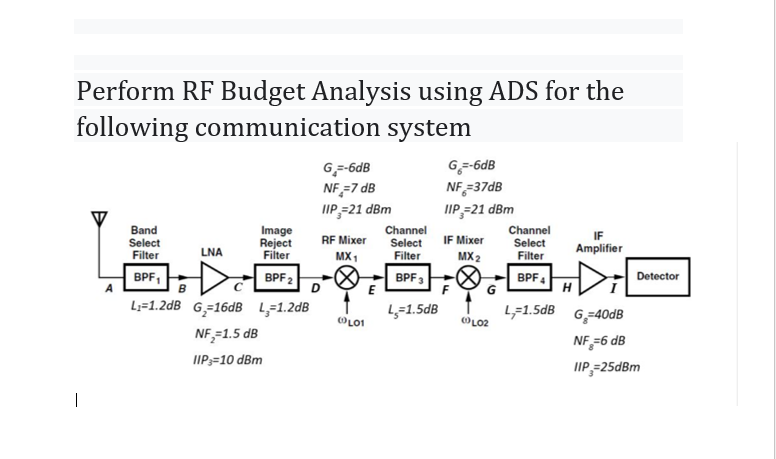

Perform RF Budget Analysis using ADS for the following communication system G,-6dB G=-6dB NF =7 dB NF=37dB TIP=21 dBm HIP,=21 dBm Band Image Channel IF Select Reject RF Mixer Select Amplifier Filter Filter MX1 Filter BPF BPF BPF 4 Detector H L3=1.2dB G =16dB L=1.2dB 1=1.5dB L=1.5dB GE=40dB NF =1.5 dB NF =6 dB IIP=10 dBm IIP=25dBm Channel Select Filter IF Mixer LNA MX 2 DBPF?] E G LO1 LO2 |
