Q4) Design a Type 1 Chebychev low pass filter to meet the following analog design specifications: Passband edge Frequenc

Post by answerhappygod »

Q4 Design A Type 1 Chebychev Low Pass Filter To Meet The Following Analog Design Specifications Passband Edge Frequenc 1
Q4 Design A Type 1 Chebychev Low Pass Filter To Meet The Following Analog Design Specifications Passband Edge Frequenc 1 (27.71 KiB) Viewed 30 times

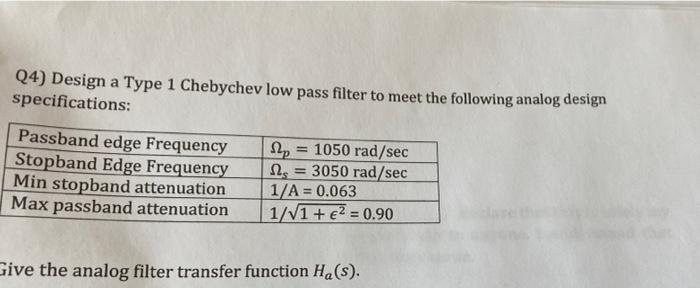

Q4) Design a Type 1 Chebychev low pass filter to meet the following analog design specifications: Passband edge Frequency 12p = 1050 rad/sec Stopband Edge Frequency 3050 rad/sec Min stopband attenuation 1/A = 0.063 Max passband attenuation 1/v1 + 2 = 0.90 Give the analog filter transfer function Ha(s).
