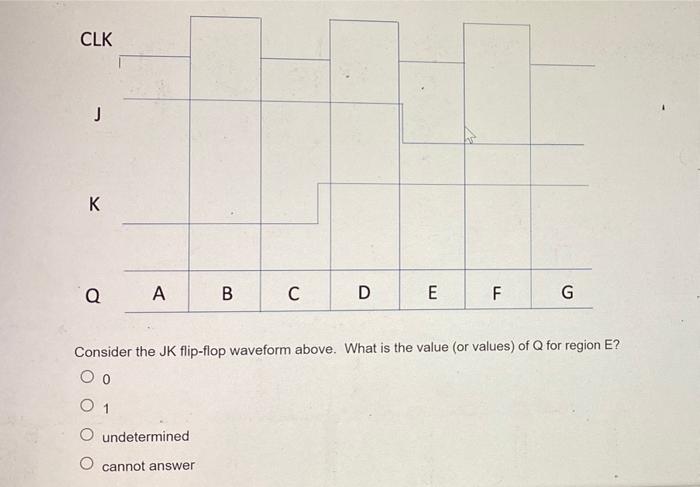

CLK J K Q А. B C D E F G Consider the JK flip-flop waveform above. What is the value (or values) of Q for region E? 1 O undetermined O cannot answer

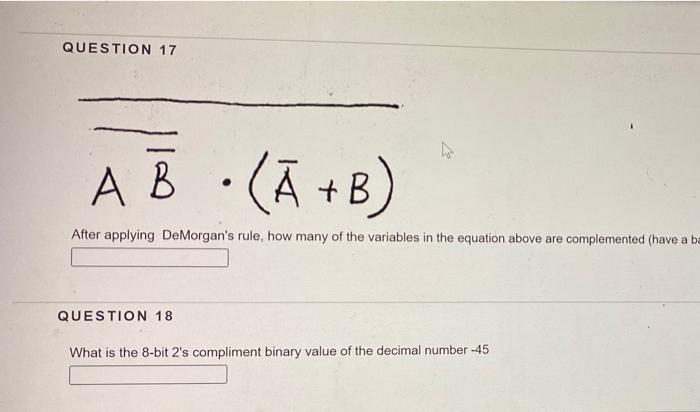

QUESTION 17 A B • (Ā +B) AB . After applying DeMorgan's rule, how many of the variables in the equation above are complemented (have a ba QUESTION 18 What is the 8-bit 2's compliment binary value of the decimal number -45
