QUESTION 7 CLK D A B с Q D E F Consider the latch timing diagram above. What is the value or values for in region A? O 0

[answerhappygod]

1 (16.43 KiB) Viewed 48 times

2 (15.88 KiB) Viewed 48 times

3 (21.08 KiB) Viewed 48 times

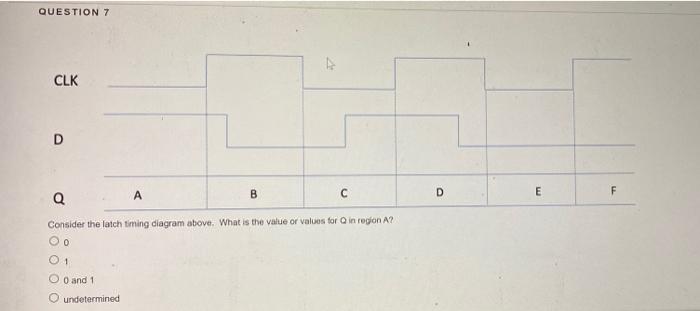

QUESTION 7 CLK D A B с Q D E F Consider the latch timing diagram above. What is the value or values for in region A? O 0 and 1 undetermined

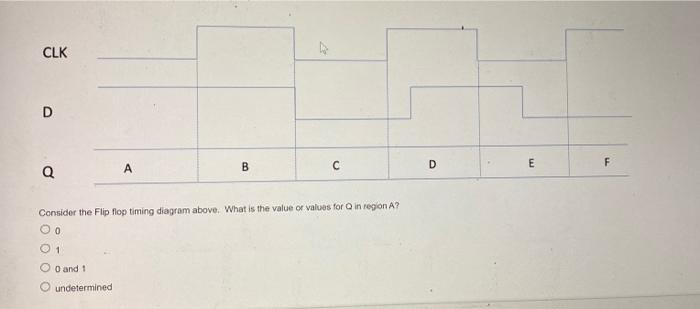

CLK D C B D E F A Q Consider the Flip flop timing diagram above. What is the value of values for in region A? Oo 0 1 O and 1 ОО undetermined

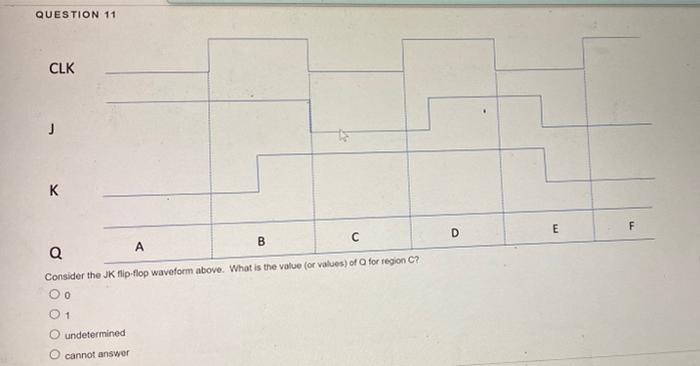

QUESTION 11 CLK J K דין D E F B A С Q Consider the JK flip-flop waveform above. What is the value for values) of O for region C? Oo 1 undetermined cannot answer
