Please answer asap in 10 minutes, thank you

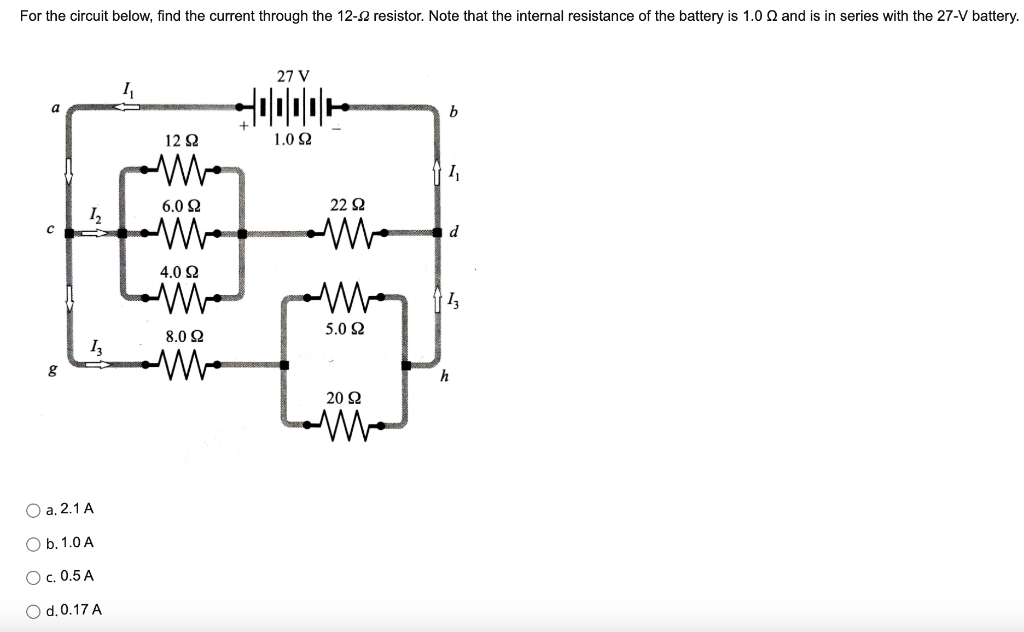

For the circuit below, find the current through the 12-Ω resistor. Note that the internal resistance of the battery is 1.0Ω and is in series with the 27-V battery. 27 V Ι a b 12Ω 1.0 Ω I, 6.0Ω 22 Ω 1, C Λ d 4.0Ω ΑΛΛ I, 8.0Ω 5.0Ω 15 g h 20 Ω Οa, 2.1A Ob. 1.0A Oc. 0.5A Od. 0.17A
