10. Refer to the circuit below. Fill in the table with total resistance given each switch setting. R1 Rt 560Ω Switch 2 P

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

10. Refer to the circuit below. Fill in the table with total resistance given each switch setting. R1 Rt 560Ω Switch 2 P

Post by answerhappygod »

1
1 (86.95 KiB) Viewed 33 times

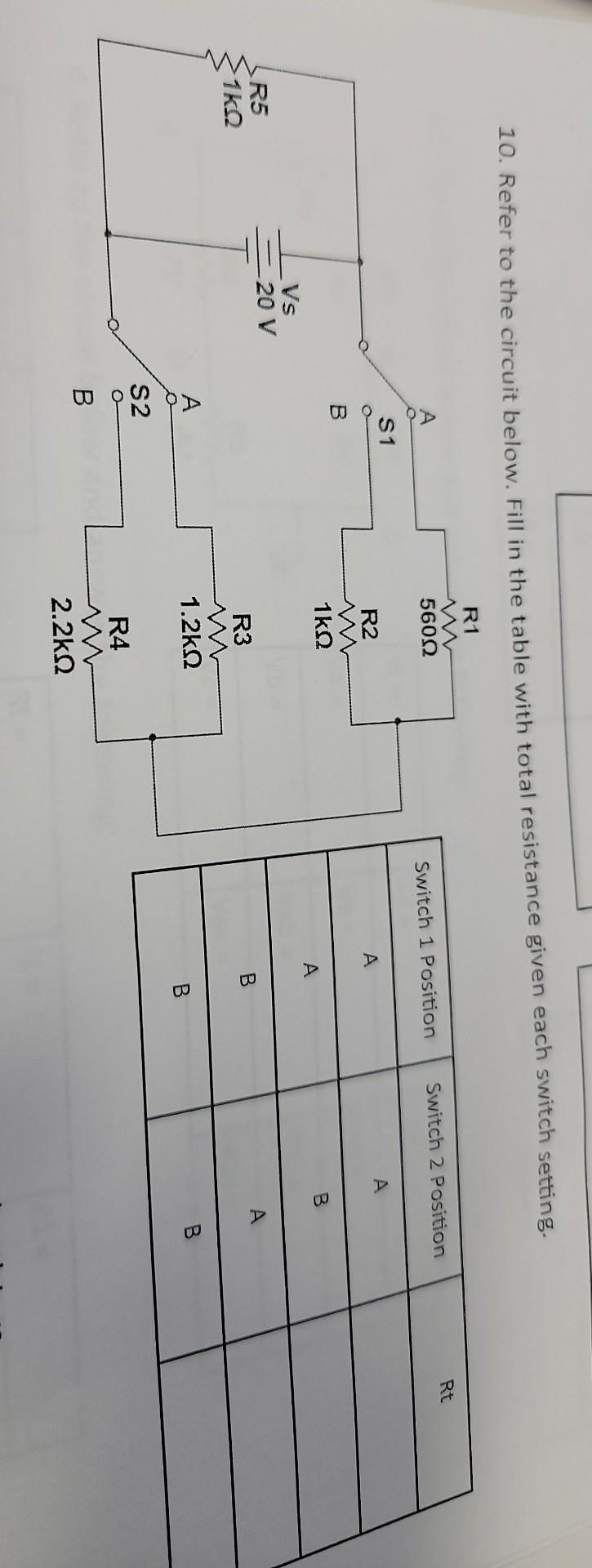

10. Refer to the circuit below. Fill in the table with total resistance given each switch setting. R1 Rt 560Ω Switch 2 Position Switch 1 Position S1 A A B R2 M 1kΩ B A Vs 20 V A W R5 1k2 R3 B A 1.2k02 S2 B R4 W 2.2k 2
