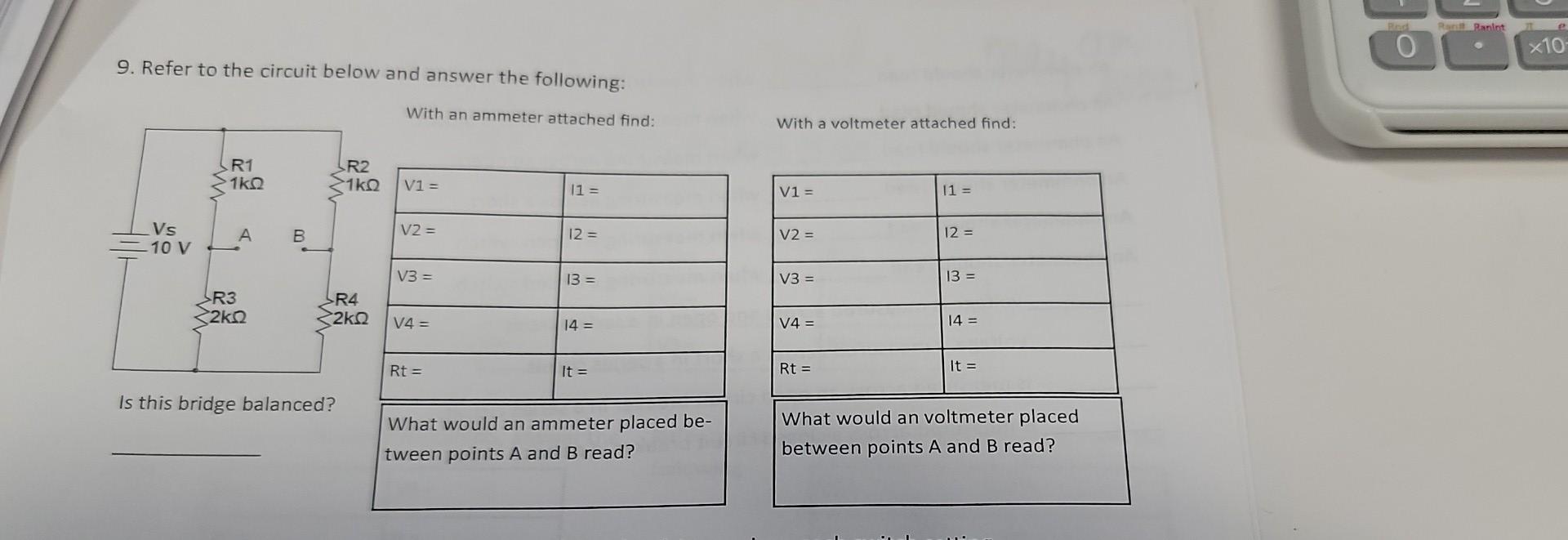

Ro Rantot o x10 9. Refer to the circuit below and answer the following: With an ammeter attached find: With a voltmeter attached find: R1 1kΩ R2 1kΩ V1 = Il = V1 = 11 = Vs -10 V А B V2= 12= V2 = 12 = V3 = 13 = V3 = 13 = SR3 2km SR4 2kΩ V4= 14 = V4 = 14 = Rt = It = Rt = It = Is this bridge balanced? What would an ammeter placed be- tween points A and B read? What would an voltmeter placed between points A and B read?
