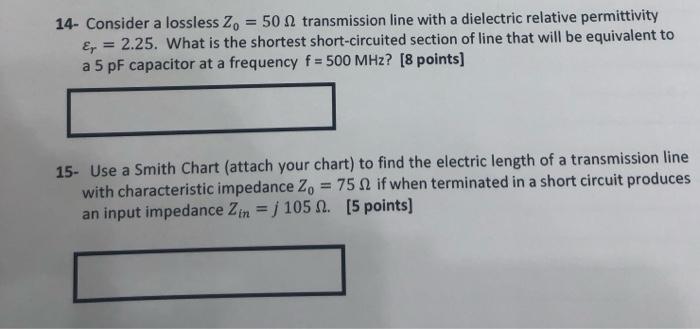

a = 14- Consider a lossless Z = 50 2 transmission line with a dielectric relative permittivity E = 2.25. What is the shortest short-circuited section of line that will be equivalent to a 5 pF capacitor at a frequency f = 500 MHz? [8 points) 15- Use a Smith Chart (attach your chart) to find the electric length of a transmission line with characteristic impedance Z = 75 if when terminated in a short circuit produces an input impedance Zin = 105 1. [5 points)
