Question 1 For the DC circuit shown in Figure 1: a. Apply the superposition method to calculate the current through resi

[answerhappygod]

Question 1 For The Dc Circuit Shown In Figure 1 A Apply The Superposition Method To Calculate The Current Through Resi 1 (104.86 KiB) Viewed 47 times

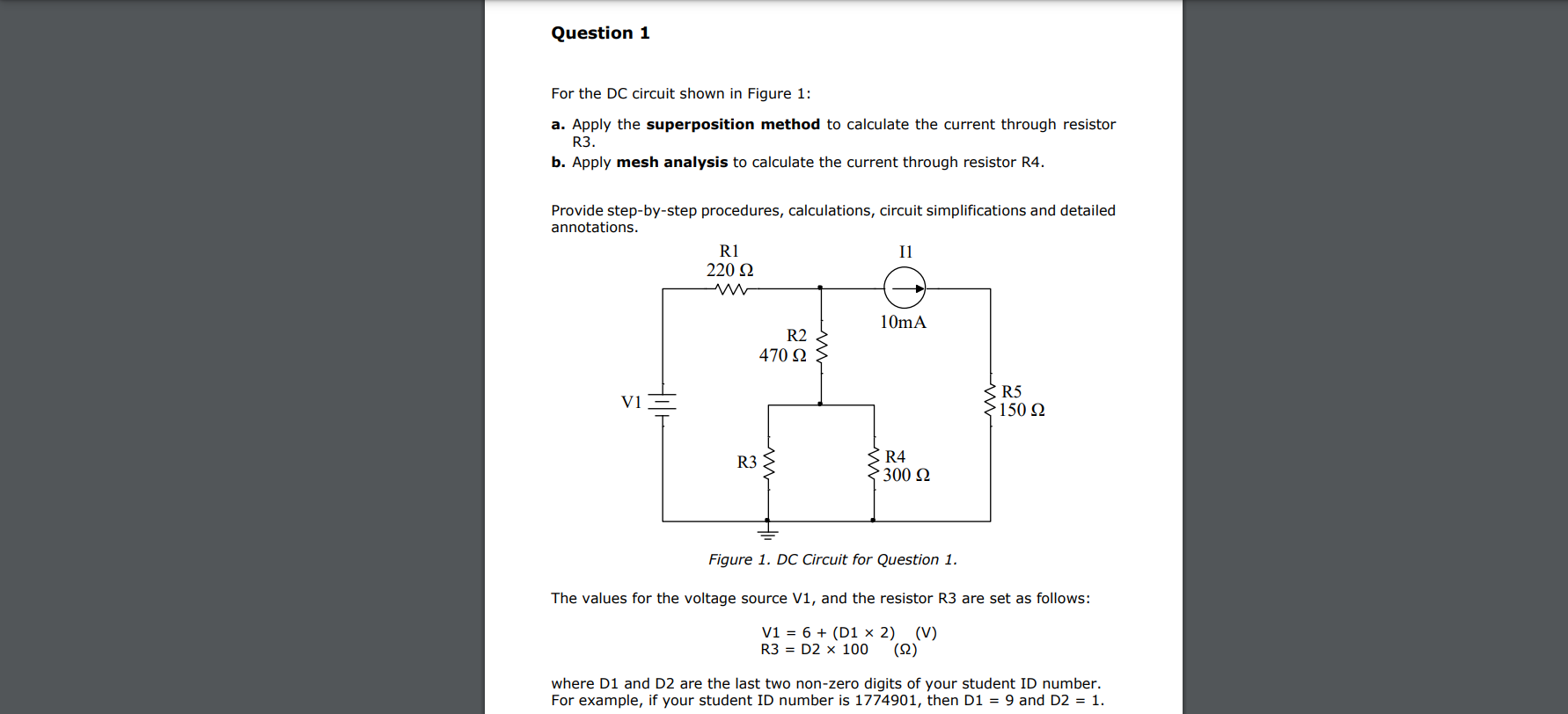

Question 1 For the DC circuit shown in Figure 1: a. Apply the superposition method to calculate the current through resistor R3. b. Apply mesh analysis to calculate the current through resistor R4. Provide step-by-step procedures, calculations, circuit simplifications and detailed annotations. R1 11 220 22 10mA R2 470 22 Vi = 3 R5 > 150 22 R3 R4 300 22 Figure 1. DC Circuit for Question 1. The values for the voltage source V1, and the resistor R3 are set as follows: V1 = 6 + (D1 X 2) (V) R3 = D2 x 100 (92) where D1 and D2 are the last two non-zero digits of your student ID number. For example, if your student ID number is 1774901, then D1 = 9 and D2 = 1.
