USE OSCILLOSCOPE TO ANSWER QUESTIONS AND SHOW PICTURES OF OSCILLOSCOPE RESULTS.
IF YOU CANNOT PROVIDE THE INFORMATION ABOVE, PLEASE DO NOT ANSWER THE QUESTION BELOW:
Use Oscilloscope To Answer Questions And Show Pictures Of Oscilloscope Results If You Cannot Provide The Information A 1 (79.88 KiB) Viewed 31 times
Use Oscilloscope To Answer Questions And Show Pictures Of Oscilloscope Results If You Cannot Provide The Information A 2 (37.71 KiB) Viewed 31 times

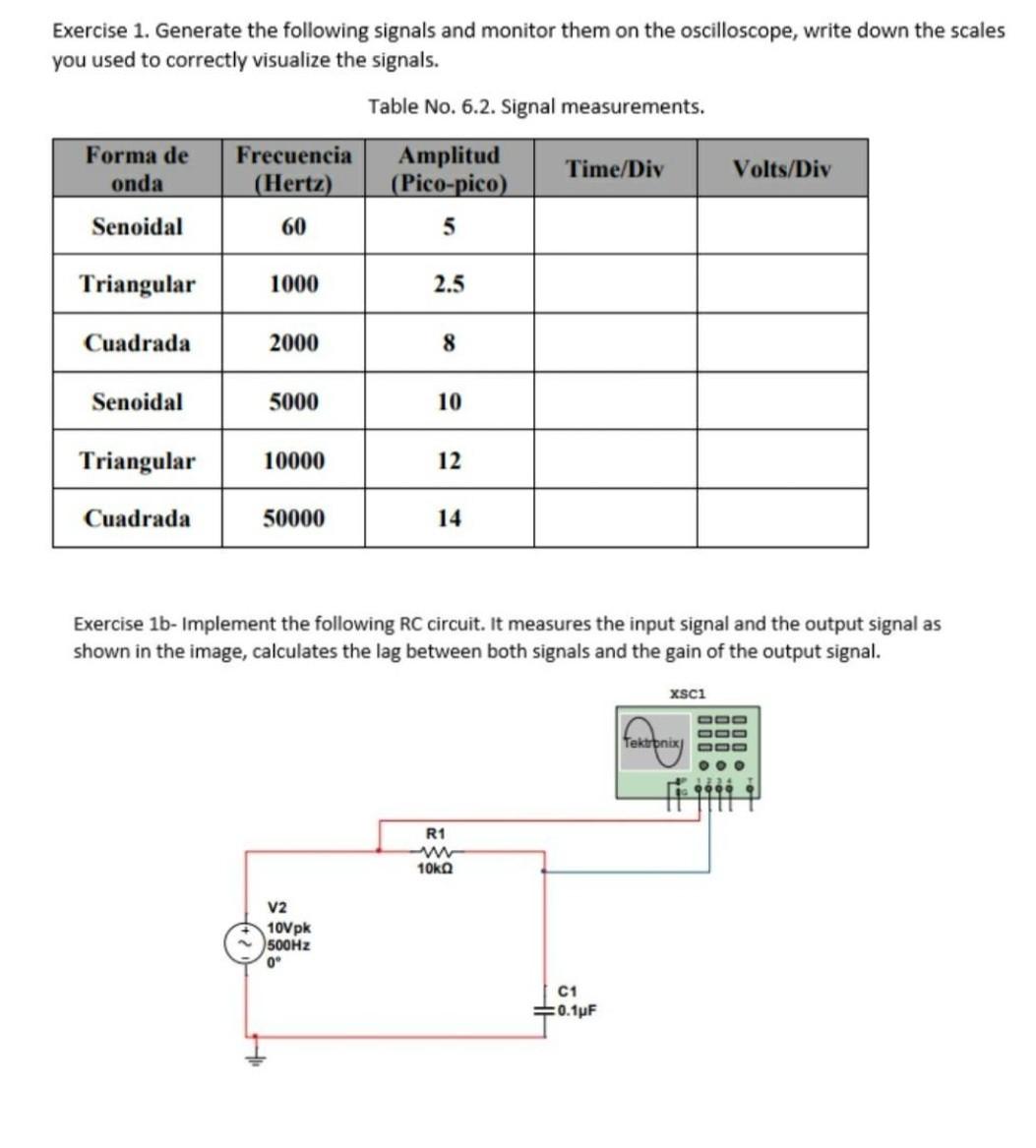

Exercise 1. Generate the following signals and monitor them on the oscilloscope, write down the scales you used to correctly visualize the signals. Table No. 6.2. Signal measurements. Forma de Frecuencia Amplitud Time/Div Volts/Div onda (Hertz) (Pico-pico) Senoidal 60 5 Triangular 1000 2.5 Cuadrada 2000 8 Senoidal 5000 10 Triangular 10000 12 Cuadrada 50000 14 Exercise 16-Implement the following RC circuit. It measures the input signal and the output signal as shown in the image, calculates the lag between both signals and the gain of the output signal. xsci Tektronix R1 w 10k us V2 10V pk 500Hz 0° C1 +0.1uF 1

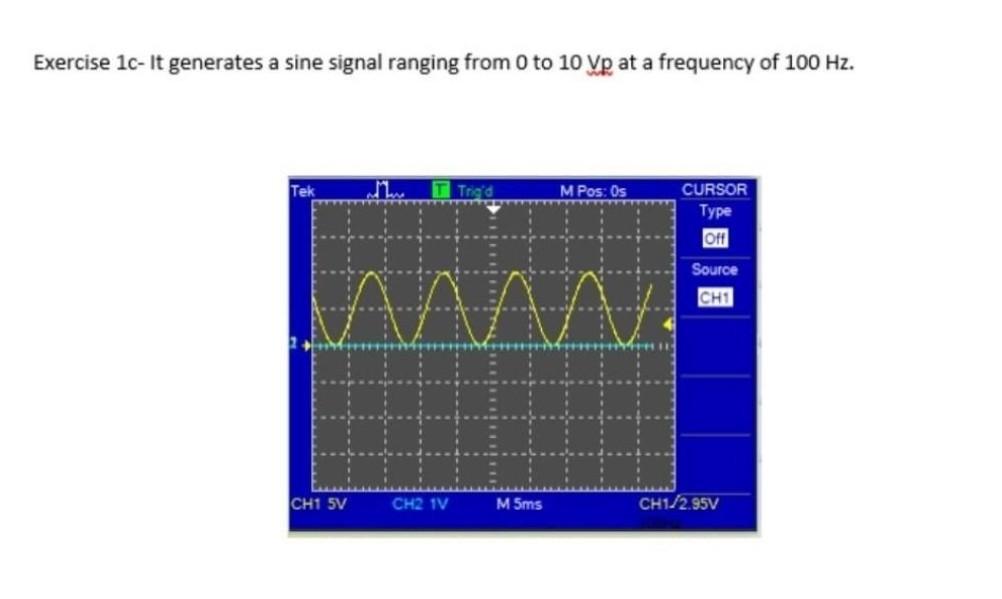

Exercise 1c- It generates a sine signal ranging from 0 to 10 vp at a frequency of 100 Hz. M Pos: Os CURSOR Type Off Source сні АДАМ. CH1 5V CH2 1V M Sms CH1/2.95V
