6. [20 points) For the system in Fig. 4, suppose a, b, ki and k2 are positive gains. (1) Find the transfer function from
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6. [20 points) For the system in Fig. 4, suppose a, b, ki and k2 are positive gains. (1) Find the transfer function from

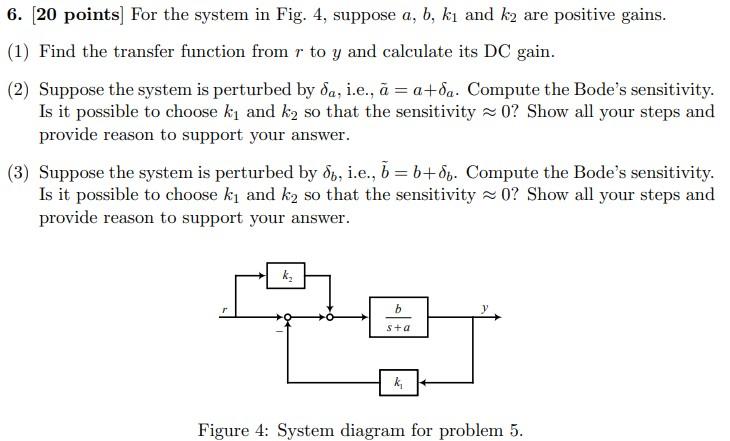

6. [20 points) For the system in Fig. 4, suppose a, b, ki and k2 are positive gains. (1) Find the transfer function from r to y and calculate its DC gain. (2) Suppose the system is perturbed by da, i.e., a = a+da. Compute the Bode's sensitivity. Is it possible to choose ki and k2 so that the sensitivity – 02 Show all your steps and provide reason to support your answer. (3) Suppose the system is perturbed by db, i.e., b = 6+86. Compute the Bode's sensitivity. Is it possible to choose ki and k2 so that the sensitivity – 02 Show all your steps and provide reason to support your answer. ki pe b s+a Figure 4: System diagram for problem 5.
