how can i solve for the circuit theoratically to get the value of the 3 resistors which are 10k ohm? note that v2 is cha

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

how can i solve for the circuit theoratically to get the value of the 3 resistors which are 10k ohm? note that v2 is cha

Post by answerhappygod »

How Can I Solve For The Circuit Theoratically To Get The Value Of The 3 Resistors Which Are 10k Ohm Note That V2 Is Cha 1
How Can I Solve For The Circuit Theoratically To Get The Value Of The 3 Resistors Which Are 10k Ohm Note That V2 Is Cha 1 (55.27 KiB) Viewed 37 times

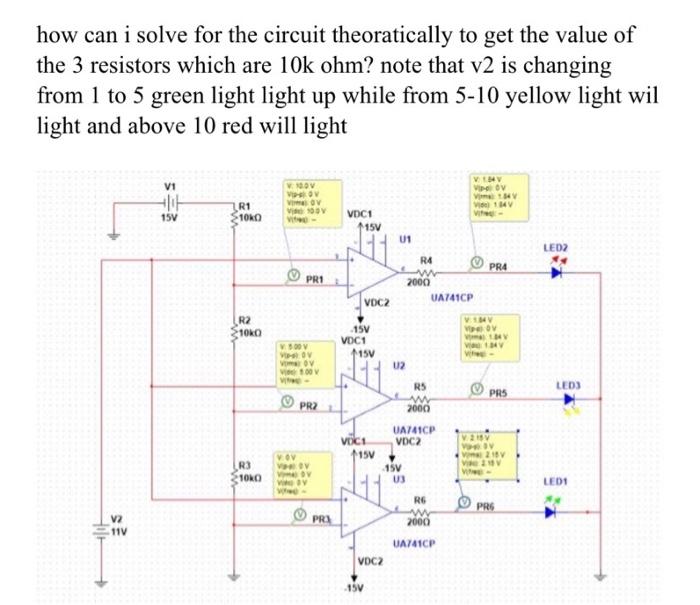

how can i solve for the circuit theoratically to get the value of the 3 resistors which are 10k ohm? note that v2 is changing from 1 to 5 green light light up while from 5-10 yellow light wil light and above 10 red will light 5 V VIO VY 114 li VO VOV VOY 15V R1 100 w VDCI 15V U1 LED2 PR4 PR1 R4 w 2000 VA741CP VDCZ R2 3100 VV VO V4 15V VDC1 115V SOOV VROV OV V00V U2 RS LED) PRS PR2 2000 UA741CP VOC2 VÖKI 25 VO 2167 V VOV 119 R3 100 15V US VOY LED1 RG PRG PRI V2 11V 2000 UA741CP VDC2 15V
