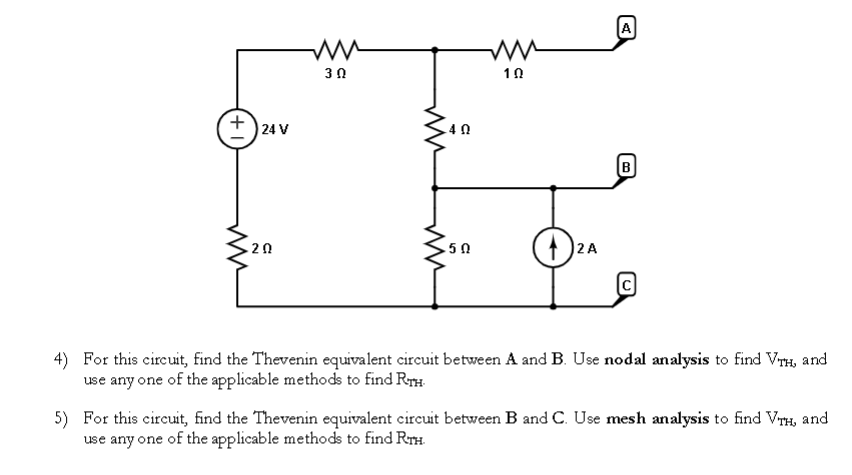

A w 10 30 +24V 40 (в 20 50 )2A C 4) For this circuit, find the Thevenin equivalent circuit between A and B. Use nodal an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A w 10 30 +24V 40 (в 20 50 )2A C 4) For this circuit, find the Thevenin equivalent circuit between A and B. Use nodal an
A w 10 30 +24V 40 (в 20 50 )2A C 4) For this circuit, find the Thevenin equivalent circuit between A and B. Use nodal analysis to find Vrh, and use any one of the applicable methods to find RTH 5) For this circuit, find the Thevenin equivalent circuit between B and C. Use mesh analysis to find VTH, and use any one of the applicable methods to find Roth.
