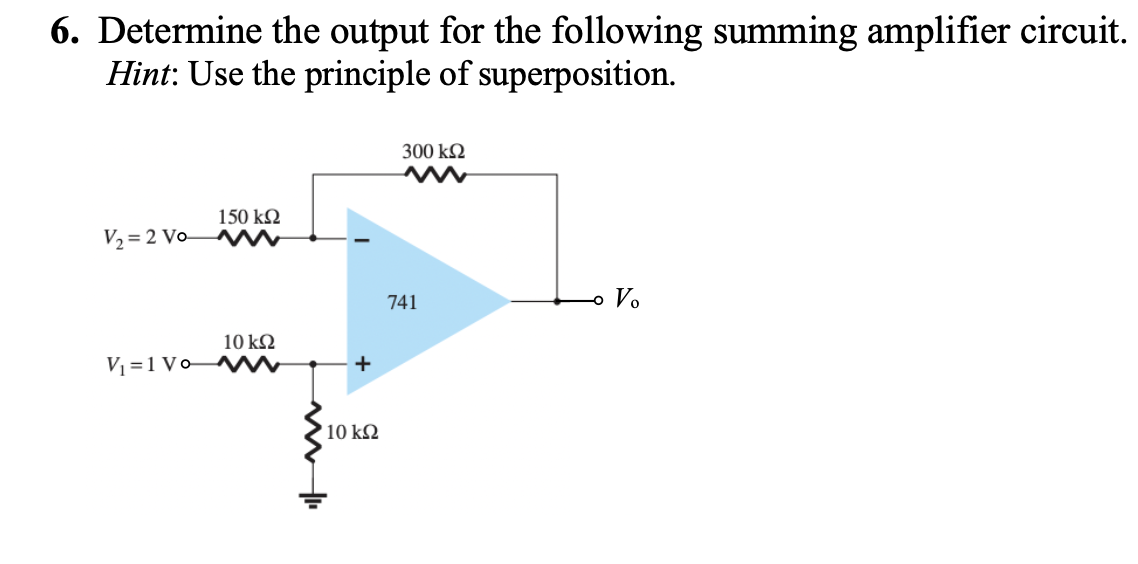

6. Determine the output for the following summing amplifier circuit. Hint: Use the principle of superposition. 300 k92 1
